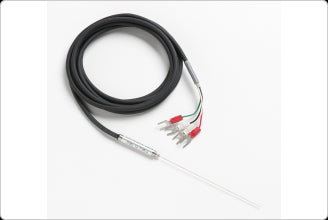

Fluke 5622 Fast Response Platinum Resistance Thermometers (PRTs) - High Accuracy Industrial Temperature Sensor for HVAC, Laboratories & Food Processing (Item No. 4271160)
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:19 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:12367137
Product Description
(item no. 4271160)
Designed for temperature measurements requiring fast response or short immersion over a wide range
- Time constants as fast as 0.4 seconds
- Available as DIN/IEC Class A PRTs or with NVLAP-accredited calibration, lab code 200348-0
- Small probe diameters ranging from 0.5 mm to 3.2 mm
For special temperature measurement applications requiring fast response or short immersion over a wide temperature range, Fluke Calibration's 5622 series PRTs are the perfect solution.
The Fluke Calibration series of fast response PRTs includes four models with stainless steel sheaths ranging from 0.5 to 3.2 mm (0.02 to 0.125 in) in diameter. Because these high-quality wire-wound sensors come in small packages, heat transfer to the sensors occurs quickly. Time constants from 0 °C to 100 °C are as fast as 0.4 seconds.
Immersion requirements for these probes is also a plus, ranging from just 10 mm to 64 mm (0.4 to 2.5 inch), depending on the model. Getting into shallow or tight places is not a problem. And because these probes can handle temperatures from –200 °C to 350 °C, they’re more versatile than most thermistors.
5622 PRTs come with two calibration options. Uncalibrated, each of these probes conforms to DIN/IEC Class A requirements with accuracy of ±0.15 °C at 0 °C and ±0.55 °C at 200 °C and –200 °C. Alternatively, any Model 5622 PRT may be purchased with a Model 1923-4-N ITS-90 Comparison Calibration, which includes seven points from –197 °C to 300 °C. With calibration, short-term accuracies are achieved as good as ±0.04 °C at 0 °C.
Readout options for the Model 5622 PRTs include Fluke Calibration's or the . Each of these readouts will read your PRT as a standard DIN/IEC probe or as an individually calibrated PRT.
Whatever your thermometry requirements are, come to Fluke Calibration. No one else offers a wider range of standards-quality reference thermometers.
| Specifications | |
| Temperature Range | –200 °C to 350 °C |
| Nominal RTPW | 100 Ω |
| Temperature Coefficient | 0.00385 Ω /Ω/°C nominal |
| Calibrated Probe Accuracy (includes calibration uncertainty and short-term stability) | 5622-05 and 5622-10: 5622-16 and 5622-32: |
| Uncalibrated DIN/IEC Conformity | DIN/IEC Class A; ± 0.15 °C at 0 °C |
| Time Constant (63.2 %) | From 0 °C to 100 °C: 5622-05: 0.4 seconds 5622-10: 1.5 seconds 5622-16: 3.0 seconds 5622-32: 10 seconds (90 %) |
| Immersion Depth | 5622-05: 10 mm (0.4 in) 5622-10: 20 mm (0.8 in) 5622-16: 32 mm (1.25 in) 5622-32: 64 mm (2.5 in) |
| Thermal EMF | 20 mV at 350 °C |
| Sheath | 316 SST 5622-05: 100 x 0.5 mm (4 x 0.02 in) 5622-10: 100 x 1.0 mm (4 x 0.04 in) 5622-16: 200 x 1.6 mm (8 x 0.06 in) 5622-32: 200 x 3.2 mm (8 x 0.13 in) |
| Cable | PVC, 4-wire cable, 2 meters long, 90 °C max temp |
| Accessory | Description |
|---|---|
Probe Carrying Case, Plastic | |
Probe Carrying Case, Plastic (for probes 635 mm [25 in] in length) | |
| 1923-4-N | PRT Calibration, –200 °C to 300 °C, ± 25 mK at 0 °C, NVLAP Accredited |
| 1930-4-N | System Calibration by Comparison, –200 °C to 300 °C, NVLAP Accredited |
