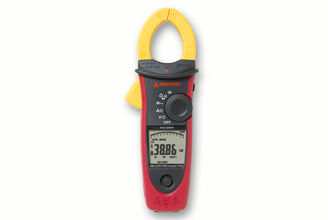

Fluke Amprobe ACDC 52NAV 600A AC/DC TRMS Digital Clamp Meter - Professional Electrical Tester for HVAC, Automotive & Industrial Use
$570.35 $1037
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:25 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:12509269
Guranteed safe checkout
Product Description
(item no. 3729961)
The ACDC-52NAV clamp-on power meter is the ideal choice for jobs that require AC/DC current measurements to 600A, AC/DC voltage to 1000V and wide jaws to accommodate large conductors.
This AC/DC current clamp meter offers a full range of power quality diagnostics including power and power factor, total harmonics distortion, individual harmonics, in-rush current, phase sequence, TRMS and low pass filter for industrial power monitoring and verifying system conditions.
Features
- True-rms technology improves accuracy in noisy environments
- Measures AC/DC voltage to 1000V, AC/DC current to 600A, plus resistance, frequency, capacitance, power and power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
- Includes inrush current measurement and phase rotation indication for 3-phase motors
- Non-contact voltage detection enhances safety
- Low pass filter enables measuring voltage and frequency on variable frequency drives
- Continuity beeper quickly identifies shorts and opens
- Large backlit digital display with analog bar graph presents the full picture
- Min, max and smart data hold
- Peak hold identifies spikes and transients
- In-jaw flashlight automatically lights when jaws open to illuminate dark panels and junction boxes
- Auto power off conserves battery life
- Maximum jaw opening accommodates large conductors up to 1.45 (37mm)
- Rubber overmold body absorbs shocks—drop proof to 4 feet (1.2m)
- CAT IV-rated AC/DC current clamp meter
- Includes test leads, batteries (installed), deluxe carrying case, and user's manual
Specifications
| FEATURE | ACD-50NAV | ACD-51NAV | ACDC-52NAV | ACD-53NAV | ACDC-54NAV | BEST ACCURACY |
| AC Current | 100.00 A, 600.0 A | 100.00 A, 1000.0 A | +/- (1.5 % rdg + 5 LSD) | |||
| DC Current | _ | _ | 100.00 A, 600.0 A | _ | 100.00 A, 1000.0 A | +/- (1.5 % rdg + 5 LSD) |
| AC Voltage | 100.00 V, 1000 V | +/- (1.0 % rdg + 5 LSD) | ||||
| DC Voltage | 100.00 V, 1000 V | +/- (0.7 % rdg + 2 LSD) | ||||
| Resistance | 1.0000 KO, 10.00 KO, 100.00 KO | +/- (1.0 % rdg + 3 LSD) | ||||
| Frequency | 20.0 Hz to 10 KHz | +/- (0.5 % rdg +3 LSD) | ||||
| Capacitance | 400.0 µF, 4.000 mF | +/- (1.9 % rdg + 8 LSD) | ||||
| DCµA | _ | 1000.0 µA | _ | _ | _ | +/- (1.7 % rdg + 2 LSD) |
| Temperature | _ | -50 °F → 1832 °F (-50 ºC → 1000 ºC) | _ | _ | -50 °F → 1832 °F (-50 ºC → 1000 ºC) | +/- (1 % rdg + 0.8 ºC) |
| THD (total harmonics distortion) | 0.1% → 100.0% | +/- (3.0 % rdg + 10 LSD) | ||||
| Individual harmonics | 1 → 25 | _ | ||||
| Power | 10 kW → 600 kW | 10 kW → 1000 kW | +/- (2.5 % rdg + 5 LSD) | |||
| Power factor | -1.00 → 1.00 | +/- 3 degrees | ||||
| Accommodates conductors | Up to 1.45“ (37 mm) in diameter | Up to 1.60“ (40 mm) in diameter | ||||
