PNOZ X2.8P C Emergency Stop Safety Relay 24-240V AC/DC, 3NO + 1NC Contacts for Industrial Machinery Safety - Perfect for CNC Machines, Conveyors & Automated Production Lines
$383.35 $697
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:14 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:13611720
Guranteed safe checkout
Product Description

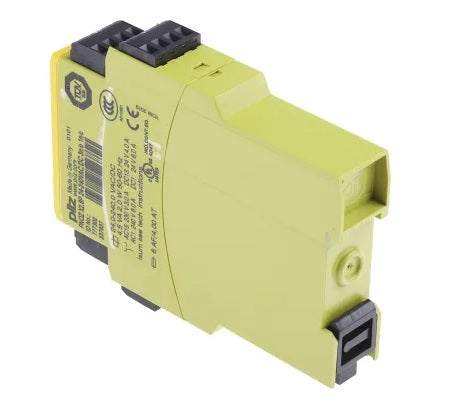

Pilz 787302, E-STOP Safety Relay 24-240VAC/DC, 3 x NO Safety Contacts, 1 x NC Auxiliary Contact, PNOZ X2.8P C 24-240VAC/DC 3n/o 1n/c
Safety Relay for Monitoring E-STOP Pushbuttons, safety gates and light barriers.
Safety Features:
- Positive guides relay outputs, 3 x NO Safety Contacts, 1 x NC Auxiliary Contact
- Connection options for:
- E-Stop Pushbutton
- Safety Gate limit switch
- Reset button
- Light barriers
- LED Indicator for;
- Status channel 1/2
- Supply Voltage
- Plug In connection terminals (cage clamp terminal or screw terminal)
- Redundant Circuit with in built monitoring
- Failsafe operation in case of component failure
- Correct Open/Close Operation is tested automatically in each on-off cycle
Specification
| Pilz Part Number | 787302, E-STOP Safety Relay PNOZ X2.8P C 24-240VAC/DC 3n/o 1n/c |
| Function | E-Stop Relay for E-stop, Gate or Lighting |
| Supply Voltage | 24 - 240 VAC/DC |
| Relay Outputs | 3 x NO Safety Contacts, 1 x NC Auxiliary Contact |
| maximum Relay Current | Safety Contacts 6 Amp, Auxiliary Contact 4 Amp |
| Switch on Delay | 340ms |
| Delay on Energisation | 10ms |
| Termination Style | Screw |
| Weight | 250g |
| Certification | UL |
| Factory Pack Qty | 1 |
| Application Certification | In accordance with EN 60947-5-1, EN 60204-1 and VDE 0113-1 |
| Applications | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
