Product Description
(item no. 3474954)
Product Overview

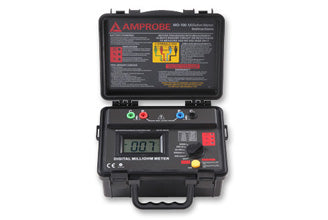

Diagnose potential failure with the MO-100, portable battery powered milliohm meter. Quickly check windings opens or shorts in motors, generators and transformers, wire-to-wire connection resistances, heating elements testing and contact resistance in critical electrical connections.
Features
- Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation
- Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100µ Ohm
- Measurement precision with three test currents with over-temperature protection
- Protection against inadvertent connection to overvoltage
- Large LCD
- Potential lead resistance, current lead resistance checks
- Auto-hold and auto-off features
- Lightweight, robust compact.
- Indicates measurement errors due to temperature or connection problems
- O-Ring sealed enclosure
- Battery powered
- IEC / EN 61010-1
Specifications
| FEATURE | MO-100 |
| Measuring range | 0 → 200.0 mO in steps of 100 µO 0 → 2000 mO in steps of 1 mO 0 → 20.00 O in steps of 10 mO 0 → 200.0 O in steps of 100 mO 0 → 2000 O in steps of 1 O |
| Test current | 1 mA (2000 O range) 10 mA (20 O / 200 O range) 100 mA (200 mO / 2000 mO range) |
| Specifications | |
| Measuring ranges: | 0-200.0m ohms in steps of 100µohm 0-2000m ohms in steps of 1m ohm 0-20.00 ohms in steps of 10m ohm 0-200.0 ohms in steps of 100m ohm 0-2000 ohms in steps of 1 ohm |
| Accuracy: | ±0.5% of reading ±2 digits over the operating temperature range, -15°C to 55°C (5°F to 131°F), with the supplied test leads |
| Test current: | 1mA =>2000 ohms range 10mA =>200/ 20 ohms range 100mA =>2000m / 200m ohm range |
| Accuracy: | ±0.1% |
| Protection fuses: | Mains = 0.5A, HBC, 5 x 20mm, DIN Current = 0.5A, HBC, 5 x 20mm, DIN Voltage = 0.5A, HBC, 5 x 20mm, DIN Maximum output Voltage (C1-C2) 20V |
