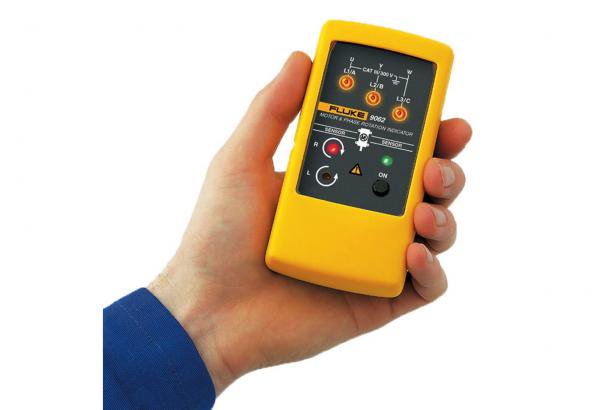

Fluke 9062 Non-Contact Phase Sequence Tester - Professional Electrical Testing Tool for HVAC, Motors & Industrial Equipment Maintenance
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:23 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:20647809
Product Description
(item no. 2435077)
Product overview
Unique phase rotation indicator with motor rotation ability
The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection. Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Features
- 3 phase indication
- Indication of phase rotation
- Indication of motor rotation direction
- Contact free determination of the rotation direction of running motors
Specifications: Fluke 9062 Motor and Phase Rotation Indicator
| Technical specifications | |
| Voltage range | Up to 400 V |
| Phase display | 120-400 V AC |
| Frequency range | 2-400 Hz |
| Operating timer | Continuous |
| Environmental specifications | |
| Operating temperature | 0 °C to 40 °C |
| Operating altitude | Up to 2000m |
| Humidity (without condensation) | 15% to 80% |
| Dust/water resistance | IP 40 |
| Safety specifications | |
| Electrical safety | EN 61010, |
| EN 61557-7 | |
| Overvoltage category | CAT III, 300 V |
| Mechanical and general specifications | |
| Size | 124 x 61 x 27 mm |
| Weight | 1 x 9 V |
| Batteries | 1 x 9 V |
| Warranty | 2 years |
Fluke 9062 Motor and Phase Rotation Indicator
Includes
- Test leads (3)
- Test probes (3)
- Alligator clips (3)
- Battery, 9 V
- User manual
