AT 50 B10 AC Current Transformer - Self-Powered 5A/50A RMS with 0-10V Output | Perfect for Energy Monitoring & Industrial Automation
$104.45 $189.92
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:13 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:27926753
Guranteed safe checkout
Product Description

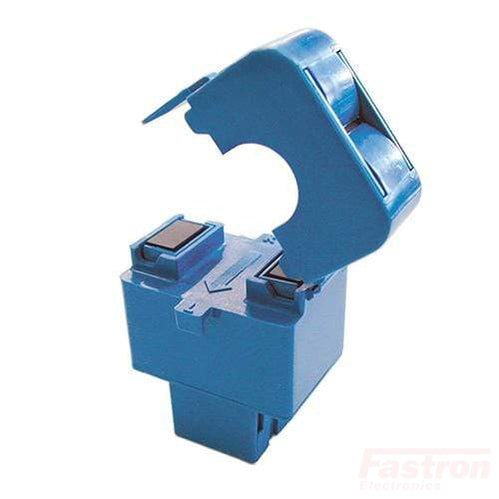

LEM AT 50 B10, AC Current Transformer, Self Powered, 5 Amp Average RMS 0-10V output, Self Powered, 50 Amp Average
Features
- Split Core
- 0-10V Average RMS Current Output
- Cable Mounting
- Self Powered
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for cable up to ? 16mm
- High isolation between primary and secondary circuits
- Easy installation
Applications
- Current Measurement
- Energy Management
- Motor Control
- Actuators
- Lamp Failure
Specification
| LEM Part Number | AT 50 B10 |
| Technology | AC Current Transformer |
| Protection Class | IP50 |
| Supply Voltage | Self Powered |
| Load Current (RMS) | 50 Amp |
| Maximum Measurement Current (RMS) | 60 Amp |
| Output | 0-10V (Average RMS) |
| Isolation | 3.5kV (AC, 50Hz, 1 min) |
| Bandwidth | 55 - 65Hz |
| Mounting Style | Din Rail Mount |
| Operating Temperature Range | -10°C / 65°C |
| Accuracy | 1.5% |
| Aperture | ? 16mm |
| Termination Style | Screw |
| Approvals | CE,UL,ROHS |
| Unit Weight | 90g |
| Factory Pack Qty | 6 |
