- Measuring range 0 to 500 m
- Max. measuring rate 250 Hz
- 1 mm accuracy
- Serial interfaces
- High precision analog output (0.1%)
- Two programmable digital outputs
- Digital input
- Digital output for error signalization
- Profibus interface (optional)
- PROFINET, EtherNet/IP and EtherCAT interfaces (optional)
- Degree of protection IP65
- Extended temperature range -40...+60°C

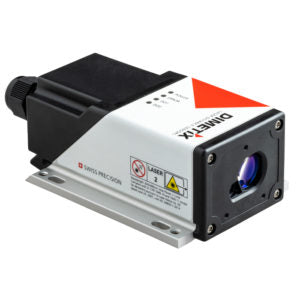

The DAE-10-050 has a smaller range, but high accuracy.
Most importantly it retains the analogue interface, whilst also being future proof with the ability to connect via digital output (both programmable or error display), RS232, RS422, SSI, Profinet... and optional EthernetIP, EtherCAT and Profibus (External).
Download a data sheet on the DAE-10-050.
