3 Phase EMI/RFI Power Line Filter, 20A 520VAC, Low Leakage Current, Standard Attenuation - for Industrial Equipment, Medical Devices & HVAC Systems
$18.7 $34
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:25 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:33780997
Guranteed safe checkout
Product Description

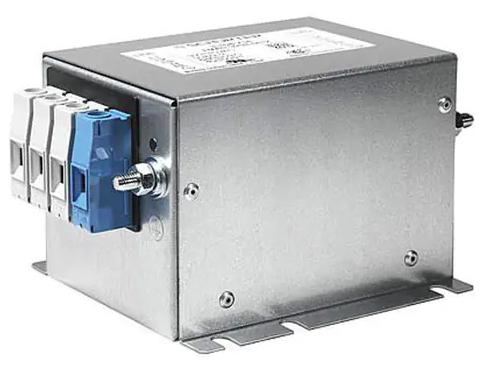

Schurter 3-110-816, 1 Stage 3 Phase + N EMC (RFI) Line Filter, 20 Amp, FMAD CP, 520VAC, Standard Attenuation, Low Leakage
Features
- Schaffner FN 355-20-03 Drop In replacmeent
- Line filter suitable for 3 Phase systems
- Low Leakage
- Wide Temperature Range
- For ultra low leakage medical version see (stocked)
Characteristics
- Designed for standard applications
- Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated
- Suitable for use in equipment according to IEC/UL 60950
- Line filter suitable for low current Inverter such as PV or battery storage systems
Specification
| Schurter Part Number | 3-110-816 |
| Rated Voltage | 520V 3 Phase |
| Rated Current | 20A |
| Filter Stages | 1 Stage |
| Operating Temperature | -40°C to 100°C |
| Filter Type | Very High Symmetrical and Asymmetrical Attenuation |
| Leakage Current | 0.5mA |
| Mounting | Panel Mount - Case FF |
| Material | Metal |
| Termination Style | Screw |
| Weight | 210g |
| Factory Pack Qty | 4 |
| Protection Class | Suitable for equipment according to IEC/UL 60950 |
| Isolation | 1.3 - 2.75kV |
| VDE/UL/CSA/ROHS | Yes |
