Product Description

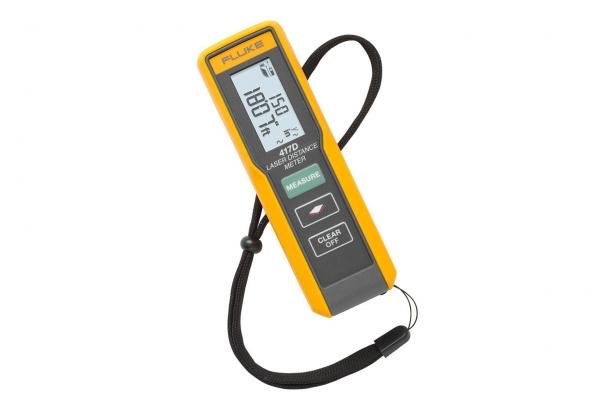

Fluke 417D Laser Distance Meter
(item no. 5099292)
Product overview
The Fluke 417D is accurate, durable, and easy to use—just point and shoot. The simple design and easy, one-button measurement operation allows you to minimise time spent measuring and maximise the reliability of measurements.
Features
- The Fluke 417D laser meter is accurate, durable, and easy to use—just point and shoot
- Instantly measure up to 40 m (131 ft.) with 1-button point-and-click
- Continuous measurement capable: adjusting as you move closer and farther from your target
- Quickly calculate area (sq feet/meters)
- 1-meter drop tested and IP54 rated: built to withstand rainy or dusty conditions
- Great for interior and exterior applications
Specifications: Fluke 417D Laser Distance Meter
| 417D | |
|---|---|
| Typical range [1] | 0.2-40 m/0.6-131 ft |
| Typical measuring tolerance* [1] | 2.0 mm ± 1.5 mm/± 0.06 in *** |
| Maximum measuring tolerance [2] | ± 3.0 mm/0.12 in *** |
| Accuracy up to 10m (+/-) | ± 2 mm |
| Display | 2 line/1 mm/1/32 in |
| Display illumination | Yes |
| Laser point at distance | 6/30/60 mm (10/40/100 m) |
| Area | Yes |
| Units setting (smallest units displayed) | 0,000m, 0' 00'' 1/32, 0 in 1/32 |
| Auto laser switch off | 90 sec |
| Auto power switch off | 180 sec |
| General | |
| Laser class | II |
| Laser type | 635 nm, <1 mW |
| Protection class | IP54 |
| Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 | Up to 3,000 measurements |
| Size (Hx W x D) | 11.9 x 3.8 x 2.6 cm |
| Drop test | 1 meter |
| Weight (with batteries) | 95g (3.35 oz) |
| Temperature range: Storage | -25 °C to 70 °C (-13 °F to 158 °F) |
| Temperature range: Operation | -10 °C to 50 °C (14 °F to 122 °F) |
| Calibration cycle | Not applicable |
| Maximum relative humidity | 85 % @ 20°F to 120 °F (-7 °C to 50 °C) |
| Safety | CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II) |
| EMC | 61326-1:2006 |
[1] Applies for 100 % target reflectivity (white painted wall), low background illumination, 25 °C (13 °F).
[2] Applies for 10 % to 500 % target reflectivity, high background illumination, -10 °C to +50 °C (14 °F to +122 °F).
[3] Tolerances apply from 0.05 m to 10 m (0.001 ft to 32.8 ft) with a confidence level of 95 %. The maximum tolerance may deteriorate to 0.1 mm/m (0.003 in/ft) between 10 m to 30 m (32.8 ft to 98.4 ft) and to 0.15 mm/m (0.005 in/ft) for distances above 30 m (98.4 ft).
[4] Applies for 100 % target reflectivity, background illumination between 10,000 lux and 30,000 lux.
[5] After user calibration. Additional angle related deviation of ± 0.01° per degree up to ± 45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ± 0.1°.
Includes:
- Two AAA batteries
- Users manual (17 languages)
- Quick reference guide
- Lanyard
- Three-year warranty
