IEC C14 Appliance Inlet Connector - Snap-in Mount, Front Side, Quick Connect Terminals 4.8x0.8mm for 2mm Panel - Perfect for Server Racks, Power Supplies & Industrial Equipment
$1.63 $2.98
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:22 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:39768340
Guranteed safe checkout
Product Description

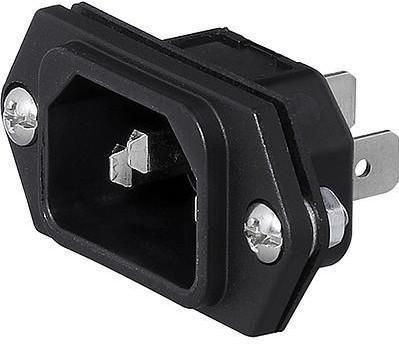

Schurter 6100.4220, IEC Appliance Inlet C14/M, Snap-in Mounting
Features
- Panel Mount : Snap-in Mounting from Front Side
- Appliance Inlet C14/M Socket acc to IEC 60320-1
- 4.8 x 0.8mm Fastron Pins
- 120 °C pin Temperature
- 2mm Panel Thickness
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
- UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I
- Other Thickness versions available on request
- Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1
Specification
| Schurter Part Number | 6100-4220 |
| Rated Voltage | 250V |
| Rated Current | 10A (CE) 15A (UL/CSA) |
| Panel Thickness | 2.5mm |
| Operating Temperature | -25°C to 120°C |
| Filter Type | N/A |
| Fuse Holder | N/A |
| Line Switch | N/A |
| Mounting | Panel Mount |
| Material | Thermoplastic, black, UL 94V-0 |
| Termination Style | Type_Screw Mount C14 Socket |
| Weight | 25g |
| Factory Pack Qty | 1 |
| Protection Class | From front side IP30 acc. to IEC 60529 |
| Isolation | 2kV |
| VDE/UL/CSA/CE/ROHS | Yes |
Datasheet
