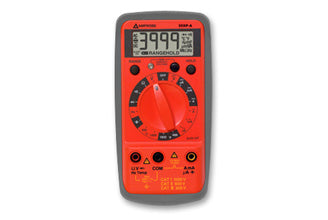

Fluke Amprobe 35XP-A 3 3/4 Digit Auto-Ranging Digital Multimeter with Non-Contact Voltage Detection, Temperature Measurement & Magnetic Hanger - Perfect for Electricians, HVAC Technicians & DIY Home Electrical Projects
$183.7 $334
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:21 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:41596889
Guranteed safe checkout
Product Description
(item no. 2727849)
The compact 35XP-A Digital Multimeter offers all the right features for HVAC and plant maintenance. It measures temperature, plus capacitance for motor run/start test, and offers 0.1 µA resolution for flame sensor testing.
Features
- Temperature measurement capability to 1000 °C/1832 °F (type-K thermocouple included)
- 600 V AC/600 V DC - highest voltage rating in this class of meter
- Capacitance for motor run/start test
- 0.1 μA resolution for flame sensor testing
- Frequency to 1 MHz
- Resistance to 40 MΩ
- Data hold freezes display
- Magne-Grip™ Holster
- VolTect™ non-contact voltage detector
- Low battery indication
Specification
| FEATURE | 35XP-A |
| DC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
| AC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
| Current AC/DC | 400.0 µA, 4.000 µA, 40.00 mA, 400.0 mA, 2 A |
| Resistance | 40.00 kΩ, 400.0 kΩ, 4.000 MΩ. 40.00 MΩ |
| Continuity beeper | |
| VolTect™ Non-Contact Voltage Detection | 70 VAC → 600 VAC (50 Hz → 60 Hz) |
| Capacitance | 4.000 nF, 40.00 nF, 4.000 µF, 40.00 µF, 400.0 µF, 4.000 mF |
| Frequency | 4,000 kHz, 40.00 kHz, 400,0 kHz, 1 MHz |
| Temperature | -4 °F → 1832 °F (-20 °C → 1000 °C) |
| Logic test | - |
| Battery test | - |
| Specifications | |
| DC Volts range: | 400 mV, 4 V, 40 V, 400 V, 600 V Accuracy: ± (0.5 % rdg + 1 dgts) |
| AC Volts (45 Hz to 500 Hz) range: | 400 mV (45 Hz to 100 Hz) 4 V, 40 V, 400 V, 600 V (45 Hz to 500Hz) Accuracy: ± (1.5 % rdg + 5 dgts) |
| Voltage resolution: | 100 µV |
| Input impedance: | 400 mV: >100 MΩ ; 4 V: 10 MΩ ; 40 V to 600 V: 9.1 MΩ |
| Overload protection: | 600 V dc or 60 V ac rms |
| DC Current range: | 400 µA, 4000 µA, 40 mA, 400 mA ± (1.0 % rdg + 2 dgt) |
| DC Current range: | 2 A ± (2.0 % rdg + 3 dgts) |
| AC Current (45 Hz to 500 Hz) range: | 400 µA, 4000 µA, 40 mA, 400 mA ± (1.5 % rdg + 5 dgts) |
| AC Current (45 Hz to 500 Hz) range: | 2 A ± (2.5 % rdg + 5 dgts) |
| Current resolution: | 0.1 µA |
| Input protection: | 2 A/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on A input |
| Burden voltage: | 500 mV max. (2 V max. on 4 mA, 400 mA ranges) |
| Resistance: | 400 Ω , 4 kΩ , 40 kΩ , 400 kΩ , 4 MΩ ± (1.0 % rdg + 4 dgts) |
| Resistance: | 40 MΩ ± (2.0 % rdg + 5 dgts) |
| Resistance resolution: | 100 mΩ |
| Open circuit voltage: | -0.45 V dc typical, (-1.2 V dc on 400 Ω range) |
| Overload protection: | 600 V dc or 600 V ac rms |
