5x20mm FSF Fast Blow Fuse 100mA - High-Speed Protection for Electronics, Appliances, and Circuit Boards
$1.54 $2.8
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:45156537
Guranteed safe checkout
Product Description

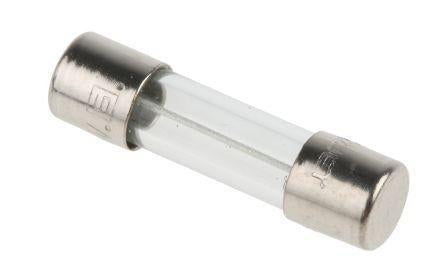

Schurter 0034.1506, Fuse 5x20mm FSF Fast 100mA
Features
- Meets UL and IEC standards
- UL Recognized for 250VAC
- High breaking capacity of 1.5 kA @ 250VAC
- Meets the requirements of IEC 60127-2 for Industrial Medical, Aviation
Applications
- Electrical Appliances
- POwer Supply Adaptors
- Switch Mode Power Supplies
- Avionics
- In-line protection
Specification
| Schurter Part Number | 0034.1506 |
| Fuse Type | I²t Fast Blow |
| Nominal Voltage | 250VAC |
| Nominal Current (AC rms) | 100mA |
| Tested Breaking Capacity | 1.5kA @250VAC |
| Dimensions | 5x20mm |
| Fuse Holder | |
| Mounting Style | Requires fuse holder |
| Operating Temperature Range | -40°C / 85°C |
| Unit Weight | 2.6g |
| Factory Pack Qty | 10 |
Datasheet
Fuse Holder
