Fluke 289/FVF/IR3000 True RMS Industrial Digital Multimeter with Fluke View Software & IR3000 Module - Perfect for Electrical Testing, HVAC Maintenance, and Industrial Automation
$1230.35 $2237
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:45729610
Guranteed safe checkout
Product Description
(item no. 4699325)
Product Overview

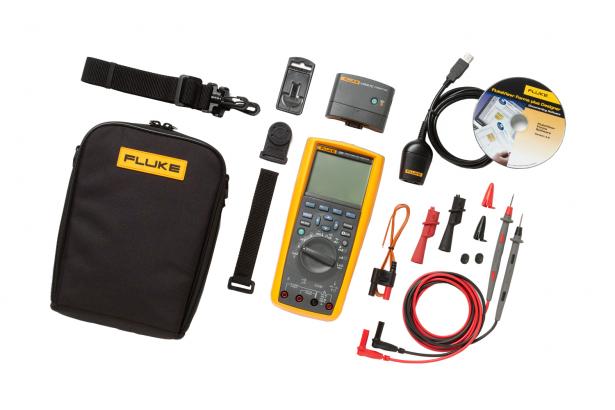

Ideal for solving problems in electronics, plant automation, power distribution, and electro-mechanical equipment, this multimeter is also compatible with the Fluke Connect app. This kit comes equipped with software and cable, 80BK-A probe, TL71 test lead set, AC175 alligator clips, TPAK meter hanger, and ir3000 FC connector.
Features
- Share results with your team using ShareLive™ video call (requires ir3000 FC wireless connector [sold separately] and Fluke Connect mobile app)
- TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred
- Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times
- Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy
- Low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment
- LoZ volts, low impedance voltage function for eliminating ghost voltages
- Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event
- Large 50,000 count, ¼ VGA dot matrix display with white backlight
- Logging function with expanded memory for unattended monitoring of signals over time
- Using on-board TrendCapture users can graphically review logged readings without needing a PC
- Store up to 15,000 recorded events
- Save multiple logging sessions before PC download is necessary
- Two terminal 50 Ω range with 1 MΩ resolution, 10 mA source current
- On board help screens for measurement functions
- Real time clock for automatic time stamping of saved readings
- Relative mode to remove test lead resistance from low ohms or capacitance measurements
- True RMS AC voltage and current for accurate measurements on non-linear signals
- Measure up to 10 A (20 A for 30 seconds)
- 100 mF capacitance range
- Peak capture to record transients as fast as 250 µs
- Works with optional FlukeView forms to enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents
Applications
- Electronics
- Plant automation
- Power distribution
- Electro-mechanical equipment
Specifications
| DC Volts | |
| Range/Resolution | 50.000 to 500.00 mV 5.0000 to 50.000 V 500.00 to 1000.0 V |
| Basic Accuracy | 0.025% |
| AC Volts | |
| Range/Resolution | 50.000 to 500.00 mV 5.0000 to 50.000 V 500.00 to 1000.0 V |
| Basic Accuracy | 0.4% (True RMS) |
| DC Current | |
| Range/Resolution | 500.00 to 5000.0 µA 50.000 to 400.00 mA 5.0000 to 10.000 A |
| Basic Accuracy | 0.05% |
| AC Current | |
| Range/Resolution | 500.00 to 5000.0 µA 50.000 to 400.00 mA 5.0000 to 10.000 A |
| Basic Accuracy | 0.6% (True RMS) |
| Temperature (Excluding Probe) | |
| Range/Resolution | 328 to 2462°F (-200 to 1350°C) |
| Basic Accuracy | 1.0% |
| Resistance | |
| Range/Resolution | 50.000 to 500.00 Ω 5.0000 to 50.000 kΩ 500.00 kΩ to 5.0000 MΩ 50.00 to 500.0 MΩ |
| Basic Accuracy | 0.05% |
| Capacitance | |
| Range/Resolution | 1.000 to 10.00 nF 100.0 nF to 1.000 µF 10.00 to 100.0 µF 1000 µF to 100 mF |
| Basic Accuracy | 1.0% |
| Frequency | |
| Range/Resolution | 99.999 to 999.99 Hz 9.9999 to 999.99 kHz |
| Basic Accuracy | 0.005% |
| General Specifications | |
| Maximum Voltage Between any Terminal and Earth Ground | 1000 V |
| Battery Type | 6 x AA Alkaline batteries, NEDA 15A IECLR6 |
| Battery Life | 100 hours minimum, 200 hours in logging mode |
| Operating Temperature | -4 to 131°F (-20 to 55°C) |
| Storage Temperature | -40 to 140°F (-40 to 60°C) |
| Relative Humidity | 0 to 90% (32 to 98.6°F [0 to 37°C]) 0 to 65% (98.6 to 113°F [37 to 45°C]) 0 to 45% (113 to 131°F [45 to 55°C]) |
| Electromagnetic Compatibility | EMC EN61326–1 |
| Vibration | Random vibration per MIL-PRF-28800F Class 2 |
| Shock | 3.3 (1 m) drop per IEC/EN 61010–1 3rd Edition |
| Dimensions | 8.75 x 4.03 x 2.38" (222 x 102 x 60 mm) |
| Weight | 1.92 lbs (870.9 g) |
