Fluke Amprobe RS 3 PRO CAT IV 300A AC Analog Clamp Meter - Professional Electrical Testing Tool for HVAC, Industrial Maintenance & Home Electrical Repairs
$316.8 $576
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:13 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:49043479
Guranteed safe checkout
Product Description

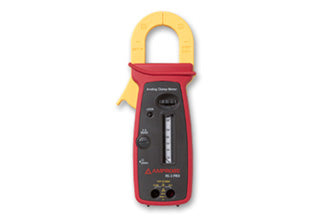

Amprobe RS-3 PRO Cat IV Analog Clamp Up to 300a AC
(item no. 3467465)
This CAT IV 600V safety rated analog clamp is a great tool for tough electrical applications. The RS-3 PRO works well in extreme temperatures from 32°F to 122°F, while digital clamp LCD screens tend to freeze this anolog clamp measures up to the test. The RS-3 PRO does not require batteries for measuring Amps and Volts and shows measurement with an easy-to-read rotary scale.
Features
- Measures AC current up to 300A
- Voltage up to 600V AC
- Resistance and continuity
- Pointer lock - data hold
- Easy to use rotary scale
- Measures volts and amps, no batteries required
- Works in temperatures from 5°F to 122°F
- Operates on 50 and 60 Hz frequency
- CAT IV, 600 V safety rated
- Includes test leads, battery (installed, for resistance measurement only), users manual, carrying case
Specifications
| FEATURE | RS-3 PRO | RS-1007 PRO |
| AC Voltage: | 150 V, 300 V, 600 V | |
| AC Current: | 6 A, 15 A, 40 A, 100 A, 300 A | 15 A, 40 A, 100 A, 300 A, 1000 A |
| Resistance: | 1000 Ω | |
| Continuity: | • | |
| Accommodates conductors: | up to 1.64" (41 mm) in diameter | up to 1.88" (47 mm) in diameter |
| Specifications | |
| Display: | Analog scales with clamping needle |
| Jaw opening/conductor diameter: | 41mm (1.64") max |
| Power supply volt/amp: | Powered by circuit under test 1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03) |
| Environmental: | Indoor operation; below 2000m (6,562ft) |
| AC Voltage (50/60 Hz): | 150 / 300 / 600 Vrms |
| Accuracy: | ± 3 % of full scale |
| Input impedance: | 1.5 MO |
| AC Amp (50/60 Hz) range: | 6 / 15 / 40 / 100 /600 Arms |
| Ohms range: | 1000 ohms; 25 Ohms mid-scale |
Models and Accessories
| Model Name | Description | |
| RS-3 PRO |
|
