APR 50 B10 Split Core AC Current Sensor - 10/25/50 Amp Selectable, True RMS 10V Output, Infinite Overload - Perfect for Solar Panel Monitoring, HVAC Systems, and Industrial Equipment Power Measurement
$173.25 $315
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:9 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:53595808
Guranteed safe checkout
Product Description

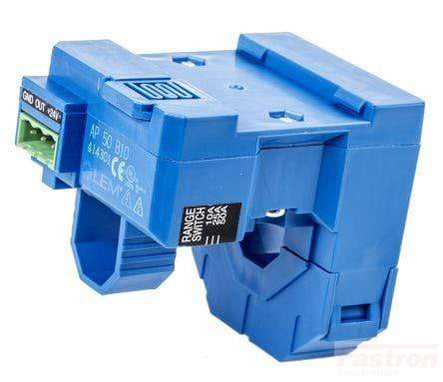

LEM APR 50 B10, Split Core AC Current Sensor, selectable 10, 25, 50 Amp, True RMS 10V output, Infinite Overload Capability
Compact and versatile Split Core AC current sensor, selectable 10, 20, 50 Amp True RMS. Selectable 0-5V, 0-10V output
Features
- Split Core
- True RMS output
- 0-10V/0-5V voltage output
- Busbar, or Din Rail Mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for busbar/cable up to 18.5mm x 18.5mm
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Mount
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| LEM Part Number | APR 50 B10 |
| Technology | AC Current Transformer with Process Output |
| ROHS | Yes |
| Supply Voltage | 24VDC @ 30mA |
| Nominal Current (RMS + DC) | 10,20,50 Amp Selectable |
| Overload | Infinite |
| Output | 0-10V/0-5V True RMS |
| Isolation | 5kV (AC, 50Hz, 1 min) |
| Bandwidth | 30-2000Hz |
| Mounting Style | Din Rail mount or Busbar mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Spring Terminal Block (Female Included) |
| Unit Weight | 90g |
| Factory Pack Qty | 6 |
