Product Description
"Please complete this , and send to so we can offer you the best option for your application."

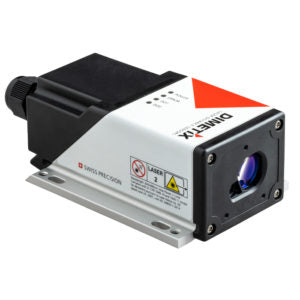

Model No. DPE-30-500 Laser Distance Sensor
The D-Series Dimetix Laser Distance Sensors are at the forefront of our continuous development and innovation. They measure long distances with the highest precision reliable and speed, even in the most difficult situations. The D-series can measure on dark surfaces - even in exterior applications with solar irradiation. With this series, which presents itself in a new modern design, Dimetix expands its product range with a device, that has an output rate of 1 kHz.
FEATURES
- Measuring range 0 to 500 m
- Max. measuring rate 250 Hz
- 1 mm accuracy
- Serial interfaces
- High precision analog output (0.1%)
- Two programmable digital outputs
- Digital input
- Digital output for error signalization
- Profibus interface (optional)
- PROFINET, EtherNet/IP and EtherCAT interfaces (optional)
- Degree of protection IP65
- Extended temperature range -40...+60°C
The DPE-30-500 has a smaller range, but high accuracy.
Most importantly it retains the analogue interface, whilst also being future proof with the ability to connect via digital output (both programmable or error display), RS232, RS422, SSI, Profinet... and optional EthernetIP, EtherCAT and Profibus (External).
Download a data sheet on the DPE-30-500.
