3 Phase Current Transformer 3PH105 - 150A, Class 1, 1.5VA, 125A Input/5A Output - Panel & Busbar Mount for Electrical Panels, Power Monitoring & Energy Management Systems
$38.39 $69.8
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:17 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:56118424
Guranteed safe checkout
Product Description

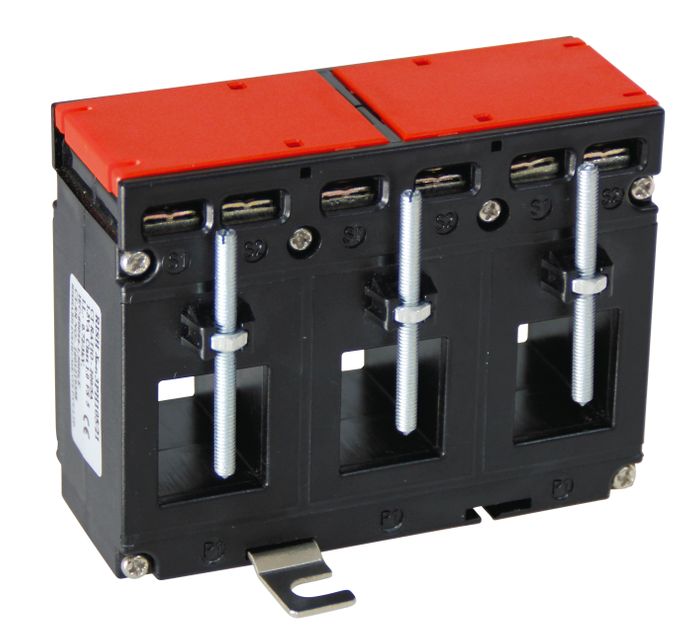

Rishabh 3PH105-21(40) 150, Class 1, 1.5VA 125 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount
Features
- Built In Sealable Terminal Covers
- Mounting Feet Supplied
- Self Powered
- Rated System Voltage 0.72/3kV
- IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Applications
- Metering Equipment
- Energy Monitoring
- AC Power Control Systems
- Power Factor Correction
- Power Quality Measurements
Specification
| Rishabh Part Number | 3PH105-21(40) 150 |
| Technology | AC Current Transformer |
| Ratio | 150/5 |

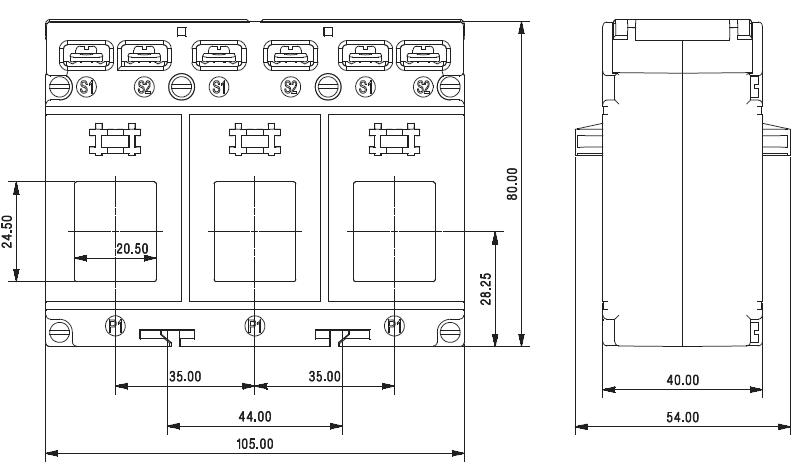

| Aperture Size | 20 x 24mm |
| VA Rating | 1.5VA |
| Accuracy Class | Class 1 |
| Output | 5 Amp AC (+20%) |
| Isolation | 3kV (AC, 50Hz, 1 min) |
| Bandwidth | 50-60Hz |
| Mounting Style | Panel Mount/Busbar Mount |
| Operating Temperature Range | -30°C / 85°C |
| Continuous Current (max) | 150Amp x 1.2 |
| Termination Style | Screw |
| Unit Weight | 1000g |
| Factory Pack Qty | 9 |
Datasheet
