Product Description

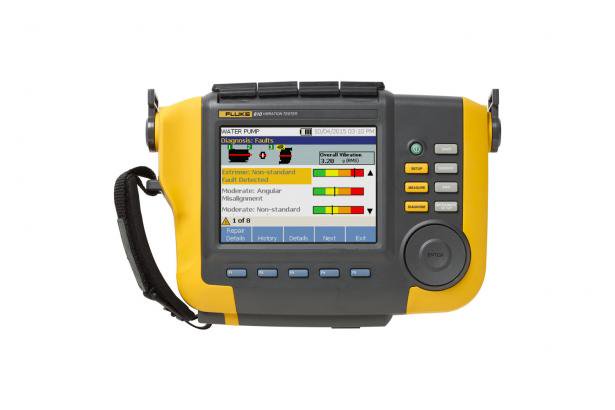

810 Vibration Tester for Mechanical Maintenance Team
(item no. 3542635)
Quickly identify mechanical problems with this vibration tester. This instrument combines a powerful diagnostic engine with a simple step-by-step process to report on specific machine issues and their state of the problem the first time measurements are taken, without any prior measurement history.
Features
- On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
- Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
- Fault severity scale with four severity levels helps you prioritize maintenance work
- Repair recommendations advise technicians on corrective action
- Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
- On-board context sensitive help provides real-time tips and guidance to new users
- Flexible machine speed configurations gives the ability to test a broad range of assets including belt drives, gear boxes, and bevel gears
- 2 GB expandable on-board memory provides enough space for your machinery’s data
- Self-test function ensures optimal performance and more time on the job
- Laser tachometer for accurate machine running speed promotes confident diagnoses
- Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers
- Viewer PC Software expands data storage and tracking capacity
Use the Fluke 810 Vibration Tester to:
- Troubleshoot problem equipment and understand the root cause of failure
- Survey equipment before and after planned maintenance and confirm the repair
- Commission new equipment and ensure proper installation
- Provide quantifiable proof of equipment condition and drive investment in repair or replacement
- Prioritize and plan repair activities and operate more efficiently
- Anticipate equipment failures before they happen and take control of spare parts inventories
- Train new or less-experienced technicians and build confidence and skill across the team
Specifications: Fluke 810 Vibration Tester
| Diagnostic Specifications | ||
|---|---|---|
| Standard Faults | Unbalance, looseness, misalignment and bearing failures | |
| Analysis For | Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles | |
| Motor Rotational Speed Range | 200 rpm to 12000 rpm | |
| Diagnosis Details | Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra | |
| Electrical Specifications | ||
|---|---|---|
| Ranging | Automatic | |
| A/D Converter | 4 channel, 24 bit | |
| Usable Bandwidth | 2 Hz to 20 kHz | |
| Sampling | 51.2 Hz | |
| Digital Signal Processing Functions | Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging | |
| Sampling Rate | 2.5 kHz to 50 kHz | |
| Dynamic Range | 128 dB | |
| Signal To Noise Ratio | 100 dB | |
| FFT Resolution | 800 lines | |
| Spectral Windows | Hanning | |
| Frequency Units | Hz, orders, cpm | |
| Amplitude Units | in/sec, mm/sec, VdB (US), VdB* (Europe) | |
| Non-volatile Memory | SD micro memory card, 2 GB internal + user accessible slot for additional storage | |
| General Specifications | ||
|---|---|---|
| Dimensions (H x D x W) | 18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in) | |
| Weight (With Battery) | 1.9 kg (4.2 lb) | |
| Display | ¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight | |
| Input/Output Connections | Triaxial sensor connection | 4 pin M12 connector |
| Single axis sensor connection | BNC connector | |
| Tachometer Connection | Mini DIN 6 pin connector | |
| PC Connection | Mini ‘B’ USB (2.0) connector | |
| Battery | Battery type | Lithium-ion, 14.8 V, 2.55 Ah |
| Battery charging time | Three hours | |
| Battery discharge time | Eight hours (under normal conditions) | |
| AC Adapter | Input voltage | 100 VAC to 240 VAC |
| Input frequency | 50/60 Hz | |
| Operating System | WinCE 6.0 Core | |
| Language Support | English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish | |
| Warranty | Three-years | |
| Environmental Specifications | ||
|---|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Operating Humidity | 10% to 95% RH (non-condensing) | |
| Agency Approvals | CHINA RoHS, CSA, CE, C TICK, WEEE | |
| Electromagnetic Compatibility | EN 61326-1:2006, EN 61010:1:2001 2nd ed. | |
| Sensor Specifications | ||
|---|---|---|
| Sensor Type | Accelerometer | |
| Sensitivity | 100 mV/g (±5%, 25°C) | |
| Acceleration Range | 80 g peak | |
| Amplitude Nonlinearity | 1% | |
| Frequency Response | Z | 2 - 7,000 Hz ±3dB |
| X, Y | 2 - 5,000 Hz ±3dB | |
| Power Requirement (IEPE) | 18 VDC to 30 VDC, 2 mA to 10 mA | |
| Bias Output Voltage | 12 VDC | |
| Grounding | Case grounded | |
| Sensing Element Design | PZT ceramic / shear | |
| Case Material | 316L stainless steel | |
| Mounting | 10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength) | |
| Output Connector | 4-Pin, M12 | |
| Mating Connector | M12 - F4D | |
| Non-volatile Memory | TEDS 1451.4 compatible | |
| Vibration Limit | 500 g peak | |
| Shock Limit | 5000 g peak | |
| Electromagnetic Sensitivity, Equivalent g | 100 μg/gauss | |
| Sealing | Hermetic | |
| Temperature Range | -50°C to 120°C (-58°F to 248°F) ±7% | |
| Warranty | One-year | |
| Tachometer Specifications | ||
|---|---|---|
| Dimensions (D x W) | 2.86 x 12.19 cm (1.125 x 4.80 in) | |
| Weight | 96 g (3.4 oz) with cable | |
| Power | Powered by 810 Vibration Tester | |
| Detection | Laser Diode Class 2 | |
| Range | 6.0 to 99,999 rpm | |
| Accuracy | 6.0 to 5999.9 rpm | ±0.01% and ±1 digit |
| 5999.9 to 99999 rpm | ±0.05% and ±1 digit | |
| Resolution | 0.1 rpm | |
| Effective Range | 1 cm to 100 cm (0.4 in to 39.27 in) | |
| Response Time | 1 second (> 60 rpm) | |
| Controls | Measure on/off transparent button | |
| Interface | 6 Pin Mini DIN | |
| Cable Length | 50 cm (19.586 in) | |
| Warranty | One-year | |
| Tachometer Accessories | Reflective tape | 1.5 x 52.5 cm (0.59 x 20.67 in) |
| Viewer PC Software | ||
|---|---|---|
| Minimum Hardware Requirements | 1 GB RAM | |
| Operating System Requirements | Windows 7, 8.1, and 10 | |
Includes:
- Vibration Tester with diagnostic technology
- Tri-axial accelerometer, magnet mount, mounting pad kit with adhesive, accelerometer quick-disconnect cable
- Laser tachometer and storage pouch
- Smart battery pack with cable and adapters
- Shoulder strap and adjustable hand strap
- Viewer PC software
- Mini USB to USB cable
- Getting Started Guide, illustrated quick reference guide, Users Manual CD-ROM,
- Carrying case
