Product Description
(item no. 2727849)

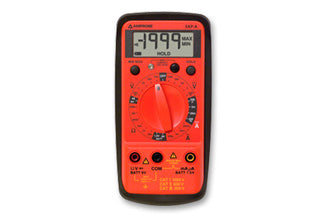

The Amprobe 5XP-A Digital Multimeter provides superior features and accuracy in a smaller form factor. The 5XP-A has unique features such as VolTect™ non-contact voltage detection and our exclusive Magne-Grip™ holster that frees both hands for work. The 5XP-A is the perfect choice for residential, commercial and general troubleshooting applications.
Feature
- 27 ranges/10 functions
- Battery load test with 1.5 V and 9 V capabilities
- Data Hold
- Min/Max record minimum and maximum values
- VolTect™ non-contact voltage (NVC) detection
- Low battery indication
- Safety rated CAT II 600 V, CAT III 300 V
Specifications
| FEATURE | 5XP-A |
| DC Voltage | 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V |
| AC Voltage | 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V |
| Current AC/DC | 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA |
| Resistance | 200.0 Ω, 2.000 kΩ, 20.00 kΩ, 200.0 kΩ, 2.000 MΩ, 20.00 MΩ |
| Continuity beeper | • |
| VolTect™ Non-Contact Voltage Detection | 70 VAC → 600 VAC (50 Hz → 60 Hz) |
| Capacitance | - |
| Frequency | - |
| Temperature | - |
| Logic test | - |
| Battery test | 1.5 V, 9 V |
| Specifications | |
| DC Volts ranges: | 200 mV, 2 V, 20 V, 200 V, 600 V, Accuracy: ± (1.0 % rdg + 1 dgt) |
| AC Volts (45 Hz to 500 Hz) ranges: | 200 mV, 2 V, 20 V, 200 V, 600 V, Accuracy: ± (1.5 % rdg + 5 dgts) |
| Voltage resolution: | 100 µV |
| Voltage input impedance: | 10 MΩ |
| Overload protection: | 200 mV: 600 V dc or 600 V ac rms (3 minutes) All other ranges: 600 V dc or 600 V ac rms |
| DC Current ranges: | 200 µA, 2 mA, 20 mA, 200 mA, Accuracy: ± (1.5 % rdg + 1 dgt) |
| AC Current (45 Hz to 500 Hz) ranges: | 200 µA, 2 mA, 20 mA, 200 mA, Accuracy: ± (2.0 % rdg + 5 dgts) |
| Current resolution: | 0.1 µA |
| Input protection: | 315 mA/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on mA input |
| Burden voltage: | 300 mV max. (1 V max. on 200 mA range) |
| Resistance: | 200 Ω , 2 kΩ , 20 kΩ , 200 kΩ Accuracy: ± (1.0 % rdg + 4 dgts) |
| Resistance: | 2 MΩ Accuracy: ± (1.5 % rdg + 4 dgts) |
| Resistance: | 20 MΩ Accuracy: ± (2.0 % rdg + 5 dgts) |
| Resistance resolution: | 100 mΩ |
| Open circuit voltage: | 0.3 V dc typical, (3.0 V dc on 200 Ω range) |
| Overload protection: | 600 V dc or 600 V ac rms |
| Continuity: audible indication: | 75 Ω ± 25 Ω, Response Time: 100 ms |
| Diode test current: | 1.0 mA (approximate) ±(1.5 % rdg + 3 dgts) |
| Diode test resolution: | 1 mV |
| Open circuit voltage: | 3.0 V dc typical |
| Non-ontact voltage indicator: | Sense voltage 70 V to 600 V ac; beeper chirps and bright red LED on, works on all ranges |
| Battery test: | 1.5 V, 9 V Accuracy: ± (3.5 % rdg + 2 dgts) |
