MAHLE Letrika (Iskra) Solenoid for AZJ3353 Starter Motor, 24VDC, 4kW - Heavy Duty Truck & Equipment Replacement Part for Reliable Engine Starting
$107.8 $196
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:14 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:72045980
Guranteed safe checkout
Product Description

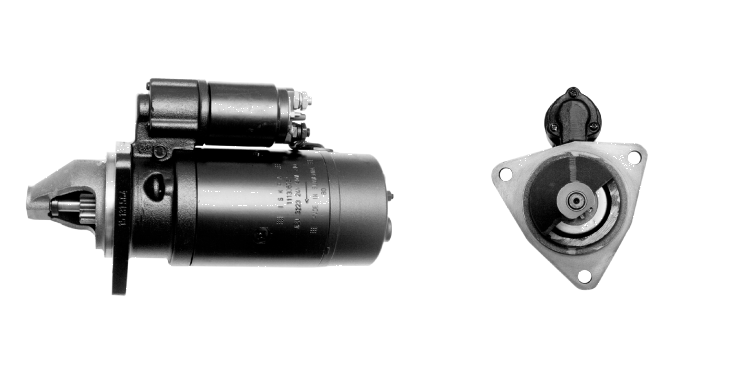

ISKRA LETRIKA (MAHLE) 11.905.159 MAHLE - Letrika(Iskra) Solenoid for Starter Motor, 24VDC, 4kW AZJ3353
Specification
| ISKRA (MAHLE) Part Number (Starter Motor) | 11.131.006 AZJ3353 |
| ISKRA/LETRIKA/MAHLE | 11131006 AZJ3353 MS360 IS1002 |
| Voltage | 24VDC |
| Power | 4kW |
| No of Pinon Teeth | 10 |
| Module | 3mm |
| Unit Weight | 14.8kg |
| Factory Pack Qty | 1 |
Applications
| Manufacturer | Vehicle | Type | Engine | Ltr | Date | |
|---|---|---|---|---|---|---|
 | HATZ | 2L41 C | 2L41C | 2L41; 2-cyl; Stage V; 24kW | 1.7 | - |
| HATZ | 2M41 | 2M41; 2-cyl | 1.7 | - | |
| HATZ | 3L41 C | 3L41C | 3L41; 3-cyl; Stage V; 37kW | 2.6 | - |
| HATZ | 3M41 | 3M41; 3-cyl | 2.6 | - | |
| HATZ | 3M43 | 3M43; 3-cyl; EGR/DPF | 2.6 | - | |
| HATZ | 4M41 | 4M41; 4-cyl | 3.4 | - | |
| HATZ | 4M42 | 4M41; 4-cyl; EGR | 3.4 | - | |
| HATZ | 4M43 | 4M43; 4-cyl; EGR/DPF | 3.4 | - | |
| HATZ | M - Series | 2-4L/M41 | - | ||
| HATZ | M - Series | 2M41 | 2-Cyl | 1.7 | - |
| HATZ | M - Series | 3M41 | 3-Cyl | 2.6 | - |
| HATZ | M - Series | 3M43-EGR/DPF | 3-Cyl | 2.6 | - |
| HATZ | M - Series | 4M41 | 4-cyl | 3.4 | - |
| HATZ | M - Series | 4M42-EGR | 4-cyl | 3.4 | - |
| HATZ | M - Series | 4M43-EGR/DFP | 4-cyl | 3.4 | - |
 | HATZ | SILENT PACK | 2L41C | 2M41; 2-cyl | 1.7 | - |
| HATZ | SILENT PACK | 2L41C | 2M41; 2-cyl; EPA | 1.7 | - |
| HATZ | SILENT PACK | 3L41C | 3M41, 3-cyl | 2.6 | - |
| HATZ | SILENT PACK | 4L41C | 4M41, 4-cyl | 3.4 | - |
| HATZ | SILENT PACK | 4L42C | 4M42, 4-cyl | 3.4 | - |
Cross Reference
| Manufacturer | Manufacturer P/N |
|---|---|
| CARGO | 113356 |
| LESTER | 18547 |
| LUCAS | LRS01945 |
| MAGNETON | 9172 780 |
| MINSK TRACTORS (BELARUS) | 2007 3708 000 |
| WILSON | 91-23-6506 |
MAHLE -> MAHLE
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1002 | 11.131.006 AZJ3353 24V 4,0kW | MS 360 | Available |
| IS1002 | 11.130.676 AZJ3223 24V 4,0kW | Superseded unit, see available P/N IS1002 |
Spare Parts
| Pos. | Letrika P/N | MAHLE P/N | Description |
|---|---|---|---|
| 1 | 16.283.287 | MSX 1266 | Drive end bracket |
| 2 | 15.120.243 | MSX 684 | Bearing |
| 3 | 16.281.299 | MSX 379 | Central cover |
| 4 | 16.905.159 | MSX 357 | Switch |
| 6 | 16.902.098 | MSX 415 | Pinion with clutch |
| 7 | 16.905.853 | MSX 370 | Lever |
| 9 | 16.361.529 | MSX 846 | Armature |
| 10 | 15.120.155 | MSX 697 | Bearing |
| 11 | 16.908.360 | MSX 828 | Fixing set |
| 12 | 16.906.637 | MSX 803 | Stator |
| 13 | 16.906.638 | MSX 388 | Brush holder |
| 14 | 16.906.639 | MSX 389 | Set of brushes |
| 15 | 16.905.689 | MSX 1328 | Rear-end bracket |
