Product Description

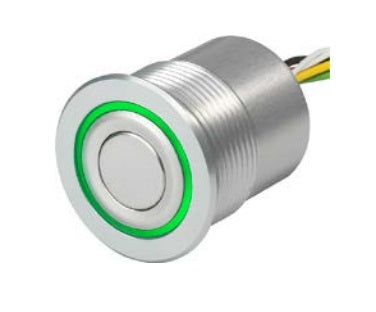

Schurter 1241.6456 MCS 30, Metal Switch Short Stroke with Red, Blue, Green Ring Illumination, 125mA @ 28VDC, 1 Million Ops

Description

• Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours
• Assembly by mounting with nut
• Pin connections, Pins with Soldering Aid or Clip for Pins

Characteristics

• Housing and actuator material types: zinc die-cast with nickel plating or stainless steel
• Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 48 VDC, switching current max. 125 mA
• Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering
• Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols
• Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data)
• Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering
