Crouzet em4 Local Nano PLC Starter Kit - 16 Inputs, 2 PWM & 8 Relay Outputs, 24V AC/DC - Perfect for Industrial Automation & Control Systems
$505.63 $919.34
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:9 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:72704060
Guranteed safe checkout
Product Description

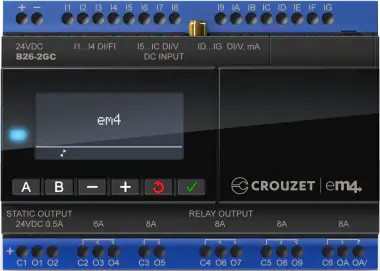

Crouzet 88981106 Crouzet em4 Local PLC Starter Kit, 16 x Inputs, 2 (PWM), 8 (Relay) Outputs, 24 V ac/dc
- Up to 104 I/Os - 16 DI (4 High Speed / 8 AI)
- 10 x DO (2 x Solid State 0.5Amp PWM, 2 Relays 6 Amp, and 6 Relays 8 Amp)
- Optional Wireless Programming & Control with native 3G and Crouzet Virtual Display
- Optional Modbus RTU Network (Master/Slave)
- Local datalog management
- Up to 1000 programing blocks with intuitive Crouzet Soft to go from simple to complex applications
- HMI Screens Available
Specification
| Crouzet Part Number | 88981106 (em4 Local) |
| Analogue Inputs | 12 x 0 - 10VDC, (4 High Speed) |
| Digital Inputs | 24VAC/DC @ 2.1mA (8 Standard and 4 High Speed) |
| Digital Outputs | Relay, 12 or 24VAC/DC, 250VAC @ 100mA minimum (2 x 6 Amp, 6 x 8 Amp) |
| PWM SSR Output | 2 |
| Expandable | Yes |
| Comms | None (, ,,, ) and Wifi versions available |
| LCD Display | Yes |
| Mounting Style | DIN Rail Mount (124.6mm) |
| Supply Voltage Range | 24VAC/DC (21.6 - 28.8VAC) |
| Termination Style | Screw |
| Weight | 350g |
| Environmental | Reach, RoHS, Halogen free 1272/2008/CE |
| Certification | CE, cULus Listed |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
