6.3 x 32mm 5A 500VAC 20kA Time Lag T Fuse (10-Pack) - Perfect for Industrial Equipment, Power Supplies & Electrical Panels
$5.5 $10
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:18 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:79571314
Guranteed safe checkout
Product Description

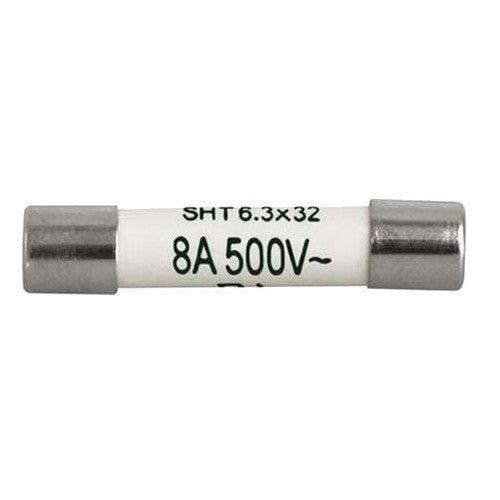

Schurter 8020.5018 SHT 6.3 x 32mm 400VDC, 500VAC Time Lag T Fuse, UL 248-14 (10pcs)
Features
- Pack of 10pcs
- Suitbale Replacement for Muticomp CF06333CT/5/10
- 6.3 x 32 mm fuses for primary protection
- 16 rated currents from 0.5 A to 32 A
- High rated voltages up to 500 VAC / 400 VDC
- High breaking capacity up to 3.5kA @ 250VAC, 20kA @ 63VDC
- Suitable for pulse-shaped continuous currents
- Useable for commercial cooking appliances according UL 197
- Designed for applications such as IEC/UL 60950
Applications
- 3-phase applications
- DC applications
- Photovoltaic
- Frequency converter
- Power electronics
- Commercial cooking appliances
Specification
| Schurter Part Number | 8020.5018 |
| Fuse Type | I²t Slow Blow |
| Nominal Voltage | 400VDC, 500VAC |
| I²t Rating (Pre-Arcing) | 271 A²/s |
| Nominal Current (DC) | 5 Amp |
| Tested Breaking Capacity | 1500 A @ 250 VAC, cos φ = 0.99 - 1 3500 A @ 400 VAC, cos φ = 0.7 - 0.8 |
| Dimensions | 6.3 x 32mm |
| Fuse Holder | Phoenix 3004171 |
| Mounting Style | Requires fuse holder |
| Operating Temperature Range | -40°C / 85°C |
| Watt Loss | 3W |
| DC Breaking Capacity | 1000 A @ 400 VDC 20 kA @ 63 VDC |
| Unit Weight | 3g |
| Factory Pack Qty | 10 |
Datasheet
Compatible Fuse Holder
TBC
