AP 50 B10 AC Current Transformer - 24VDC Powered, Selectable 10/25/50 Amp with 0-5V/0-10V RMS Output - Infinite Overload Protection - Perfect for Industrial Automation, Energy Monitoring & Smart Grid Applications
$129.6 $235.65
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:26 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:82498060
Guranteed safe checkout
Product Description

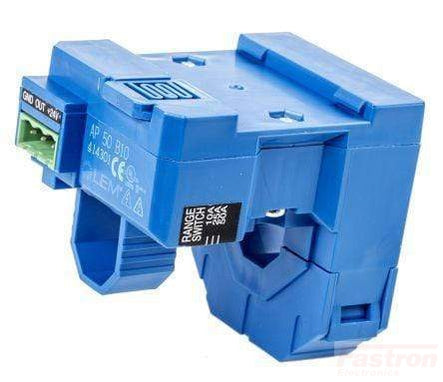

LEM AP 50 B10, AC Current Transformer, 24VDC Powered, Selectable 10,25,50 Amp, Average RMS 0-5V,0-10V output, Infinite Overload Capability
Compact and versatile Split Core AC current sensor, selectable 10, 20, 50 Amp Average RMS. Selectable 0-5V, 0-10V output
Features
- Split Core
- Average RMS output
- 0-10V/0-5V voltage output
- Busbar, or Din Rail Mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for busbar/cable up to 18.5mm x 18.5mm
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Mount
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| LEM Part Number | AP 50 B10 |
| Technology | AC Current Transformer with Process Output |
| ROHS | Yes |
| Supply Voltage | 24VDC @ 30mA |
| Nominal Current (RMS + DC) | 10,20,50 Amp Selectable |
| Overload | Infinite |
| Output | 0-10V/0-5V Average RMS |
| Isolation | 5kV (AC, 50Hz, 1 min) |
| Bandwidth | 30-2000Hz |
| Mounting Style | Din Rail mount or Busbar mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Spring Terminal Block (Female Included) |
| Unit Weight | 90g |
| Factory Pack Qty | 6 |
