Product Description

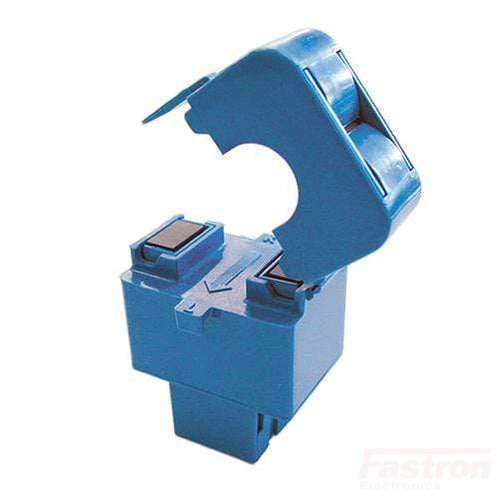

LEM AT 5 B5, Split Core AC Current Transformer, Self Powered, 5 Amp Avg RMS 0-5V outputFeatures
- Split Core
- 0-5V Average RMS Output
- Cable Mounting
- Self Powered
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for cable up to ? 16mm
- High isolation between primary and secondary circuits
- Easy installation
Applications
- Current Measurement
- Energy Management
- Motor Control
- Actuators
- Lamp Failure
Specification
| LEM Part Number | AT 5 B5 |
| Technology | AC Current Transformer |
| Protection Class | IP50 |
| Supply Voltage | Self Powered |
| Load Current (RMS) | 5 Amp |
| Maximum Measurement Current (RMS) | 6 Amp |
| Output | 0-5V (Average RMS) |
| Isolation | 3.5kV (AC, 50Hz, 1 min) |
| Bandwidth | 55 - 65Hz |
| Mounting Style | Din Rail Mount |
| Operating Temperature Range | -10°C / 65°C |
| Accuracy | 1.5% |
| Aperture | ? 16mm |
| Termination Style | Screw |
| Approvals | CE,UL,ROHS |
| Unit Weight | 90g |
| Factory Pack Qty | 6 |
