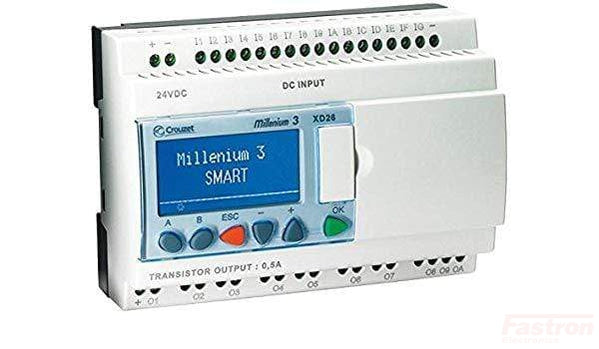

Millennium 3 Essential XD26 16I/10O S - 16 On/Off Inputs with 6 Analog, 10 Static Solid State Outputs Including 4 PWM, 24VDC - Perfect for Industrial Automation & Control Systems
$315.15 $573
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:88325784
Guranteed safe checkout
Product Description
Crouzet 88974162 Millenium 3 Series Programmable Logic Controllers
- Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting
- More cost effective solution
- Allow the use of the entire library of specific functions blocs of the software workshop
- Extended temperature range (-20 °C →+70 °C)
- Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR (0-20 mA/Pt100 with converters)
- Open to XN network communication extensions, digital I/O, analogue, Pt100 extensions
- HMI Screens Available
Specification
| Crouzet Part Number | 88974162 (XD26-16I/10O S) |
| Analogue Inputs | 0-10VDC (x6) |
| Digital Inputs | 12/24VDC (4.4mA @ 12VDC) (x16) |
| Digital Outputs | SSR, 12-24VDC @ 500mA (x10) |
| PWM SSR Output | 12-24VDC @ 500mA (x4) |
| Expandable | Yes |
| LCD Display | Yes |
| Mounting Style | DIN Rail Mount (124.6mm) |
| Supply Voltage Range | 24VDC (21.6 - 28.8VDC) |
| Termination Style | Screw |
| Weight | 350g |
| Certification | CE, UL, CSA, GL |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
