Product Description
(item no. 4821057)
Product Overview
The BC190/830 is a universal mains-power adapter (the Adapter or Product) for measurement, control, and laboratory equipment. The Adapter is intended for operating and charging the Fluke 190-Series ScopeMeter Test Tool (test tool). The Adapter is based on the switched- mode concept for high efficiency, low stand-by power consumption, and complies with level-VI requirements. It operates in a wide range of input voltages from 100 Vac up to 240 Vac nominal.

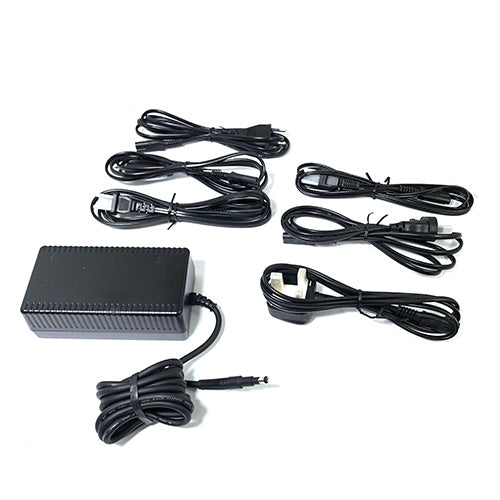

A universal set of mains cords is included to make the Adapter suitable for most types of mains outlet.
Features
- Universal mains-power adapter
- For measurement, control, and laboratory equipment
- The Adapter is intended for operating and charging the Fluke 190-Series ScopeMeter Test Tool (test tool)
- Based on the switched mode concept for high efficiency, low stand-by power consumption, and complies with level VI requirements
- It operates in a wide range of input voltages from 100 Vac up to 240 Vac nominal
Specifications
| General Specifications | |
| Input | |
| Nominal input voltage | 100 Vac to 240 Vac, ±10 % |
| Input current | 0.35 A at max. load |
| Nominal input frequency | 50/60 Hz ±10 % |
| Mains inlet | IEC 60320-1 type C8 |
| Input power, no load | <0.1 W (@ 115 / 230 Vac) |
| Output | |
| Output voltage | 18 Vdc ±5 % |
| Output current | 0 mA to 840 mA |
| Output cable length | 2 m (6.5 ft) |
| Output connector | 5 mm outer diameter, per DIN45232 |
| Output polarity | Inner contact negative, outer contact positive |
| Physical characteristics | |
| Dimensions of main unit | 79 mm x 149 mm x 49 mm |
| Housing material | Heat resistant ABS |
| Color (housing and cable) | Black |
| Weight | 0.35 kg |
| Ingress Protection | IEC 60529, IP40 |
| Environmental | |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F), up to 90 % rel. humidity, no condensation |
| Storage temperature | -40 °C to +70 °C, 10 % to 95 % rel. humidity |
| Max. altitude | |
