IEC 320 C14 Power Entry Module with EMC Filter - 10A Male Panel Mount Receptacle for Electronics & Appliances - Perfect for Servers, Medical Equipment & Industrial Devices
$26.56 $48.3
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:7 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:92839098
Guranteed safe checkout
Product Description

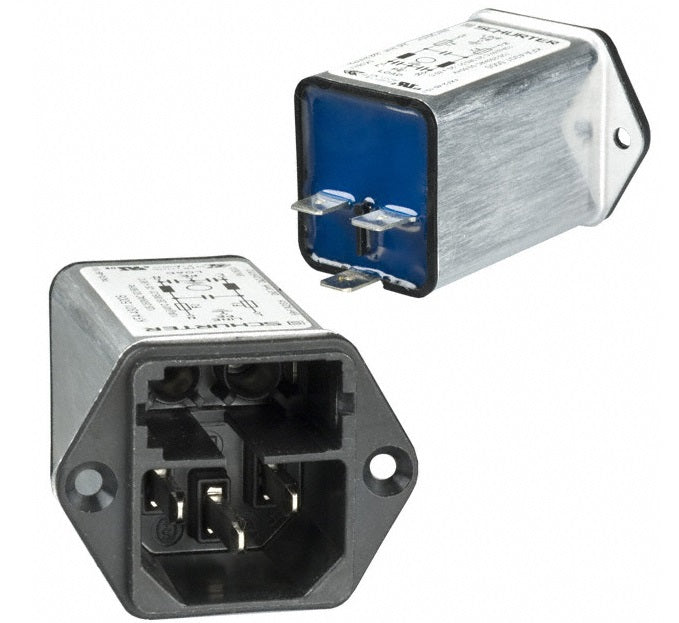

Schurter 4301.5005, IEC Inlet/Power Entry Connector Receptacle with EMC Filter, 10 Amp, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Features
- Panel Mount : Screw-on mounting from front side
- 3 Functions : Appliance Inlet Protection class I, Line Switch 2-pole, EMC Filter 1 Stage
- Line filter in standard and medical version
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
- Compact design with optimal shielding
- All single elements are already wired
- Plug removal necessary for fuse-link replacement
- 2-stage line filter with increased attenuation
- With EMC-shield
- Suitable for use in equipment according to IEC/UL 60950
- Suitable for use in medical equipment according to IEC/UL 60601-1
Medical Version
- M80
Specification
| Schurter Part Number | 4301.5005 (KFA Series) |
| Rated Voltage | 250V |
| Rated Current | 10A |
| Filter Stages | 1 Stage Standard Attenuation |
| Operating Temperature | -25°C to 85°C |
| Filter Type | Differential and Common Mode |
| Fuse Holder | N/A |
| Line Switch | 2 Pole |
| Mounting | Panel Mount - Case 50 |
| Material | Nickel Plated Steel |
| Termination Style | C14 Male to Quick Connects |
| Weight | 66g |
| Factory Pack Qty | 1 |
| Protection Class | From front side IP 40 acc. to IEC 60529 |
| Isolation | 1.7kV |
| VDE/UL/CSA/ROHS | Yes |
Datasheet
