2.0A Fast Blow Fuse 5x20mm HBC FF - Perfect for Electronics, Appliances, and Circuit Protection
$4.95 $9
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:12 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:95700312
Guranteed safe checkout
Product Description

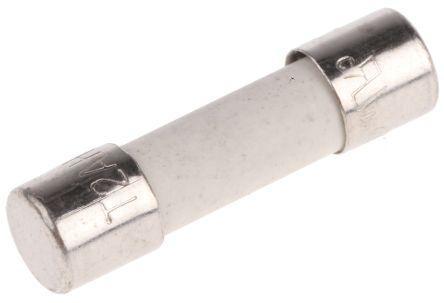

Schurter 0034.0904, Fuse 5x20mm Fast Blow HBC FF 2.0A
Features
- Meets UL and IEC standards
- UL Recognized for 250VAC
- High breaking capacity of 1.5 kA @ 250VAC
- Meets the requirements of IEC 60127-2 for Industrial Medical, Aviation
Applications
- Electrical Appliances
- POwer Supply Adaptors
- Switch Mode Power Supplies
- Avionics
- In-line protection
Specification
| Schurter Part Number | 0034.0904 |
| Fuse Type | I²t Time lag |
| Nominal Voltage | 250VAC |
| I²t Rating (Pre-Arcing) | 0.484 A²/s |
| Nominal Current (AC rms) | 2 Amp |
| Tested Breaking Capacity | 1.5kA @250VAC |
| Dimensions | 5 x 20mm |
| Fuse Holder | |
| Mounting Style | Requires fuse holder |
| Operating Temperature Range | -40°C / 85°C |
| Watt Loss | 0.6W |
| Unit Weight | 1.2g |
| Factory Pack Qty | 10 |
Datasheet
Fuse Holder
