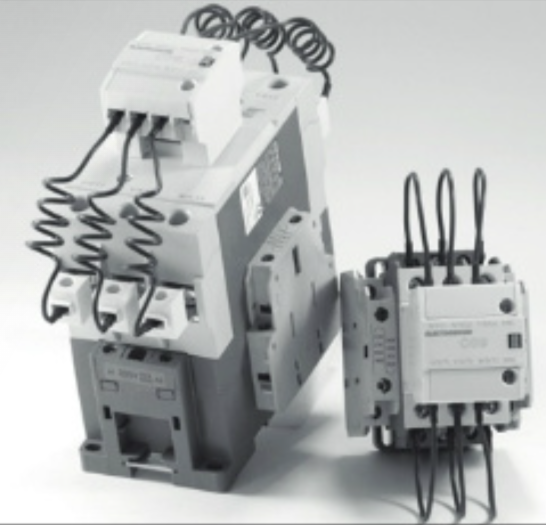

1301A.C09 12.5 + 1302A.C09 00.0 Capacitor Duty Contactor 240V/480V/600VAC 6kVar/12kVar/15kVar 200,000 Operations AC 6B - Ideal for Power Factor Correction in Industrial Electrical Systems
1301A.C09 12.5 + 1302A.C09 00.0 Capacitor Duty Contactor 240V/480V/600VAC 6kVar/12kVar/15kVar 200,000 Operations AC 6B - Ideal for Power Factor Correction in Industrial Electrical Systems

1301A.C09 12.5 + 1302A.C09 00.0 Capacitor Duty Contactor 240V/480V/600VAC 6kVar/12kVar/15kVar 200,000 Operations AC 6B - Ideal for Power Factor Correction in Industrial Electrical Systems

$40.15 $73 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:25 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:98662274

Guranteed safe checkout
amex
paypal
discover
mastercard
visa

Product Description

1301A.C09-12.5 + 1302A.C09-00.0, Capacitor Duty Contactor 240/480/600VAC @ 6, 12, 15 kVar, 200,000 Operations, AC-6B

Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity.

Features :

  • Capacitor Duty
  • Discharge Resistors
  • Three-pole contactors
  • Seven ratings from 12,5 kVAr to 60 kVAr
  • IEC 60947-4-1 for AC-6b utilization category
  • UL Approved

Advantages :

  • Conforms to utilization category AC-6b
  • Saves costs of expensive replacement
  • Long electrical life
  • Reduces watt losses during “ON” condition, saves energy
  • High safety
  • No risk of dangerous voltage
  • Switching of capacitor bank in parallel without de-rating
  • Less maintenance and downtime
  • Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz


      Specification
      Electronicon Part Number1301A.C09-12.5 + 1302A.C09-00.0
      Functions3 Pole Capacitor Duty Contactor
      Nominal Voltage230/480/600VAC @ 50Hz
      Current Carrying Capacity as per UL6kVar/Amp @230VAC, 12kVar/Amp@480VAC, 15kVar/Amp@600VAC, AC-6B
      Auxiliary Contacts1 x NO and 1 x NC
      Trip Delay Time2-10ms
      Electrical Life200,000 Ops
      Operating Temperature-25 to 40 Deg C
      Mechanical Operations15,000,000 Ops
      Control Voltage240VAC
      Power Dissipation0.36W
      ApprovalsUL
      StandardsIEC/EN 60947-4-1, AS/NZ 61009-1, AC-6B
      Weight200g
      Enclosure MaterialUL94
      Factory Pack Qty1



      Datasheet
      Application Notes
