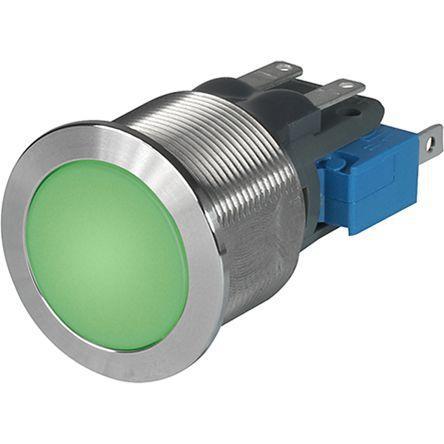

MSM CS 19mm Momentary Push Button Switch - Metal Green Illuminated (5-28VDC) - 10A 250VAC - 500,000 Operations - Ideal for Industrial Control Panels & DIY Electronics
$29.7 $54
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:99180186
Guranteed safe checkout
Product Description
1241.8449 MSM LA CS 19mm, Pushbutton Momentary Switch Metal/Ceramic with Green Illumination, 10Amp @ 250VAC,0.5 Million Ops
Description
- Pushbutton switch available in version Standard, Illiminated, Lettering, in different colours
- Assembly by mounting with nut
- Pin connections, Pins with Soldering Aid or Clip for Pins
Characteristics
- Housing and material types: zinc die-cast with nickel plating or stainless steel
- Actuator material is Ceramic
- Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC/30VDC, switching current max. 10 Amp (0.5 Amp @ 125VDC)
- Zinc die-cast for housing and Ceramic actuator For indoor use, with illumination, and optional lettering
Specification
| Schurter Part Number | 1241.8449 |
| Switch Type | Momentary |
| Switch Size | 19mm Cutout |
| Nominal Voltage | 125VAC/250VAC |
| Rated Power | 1W |
| Switch Type | Momentary Contact C/O SPDT |
| Illumination voltage | 5-28VDC |
| Nominal Current (AC/DC) | 0.1 Amp @ 30VDC, 5/3 Amp @ 125VAC/250VAC |
| Contact Resistance ON/OFF | <100m Ohm |
| Dimensions | ø22 x 14.6mm |
| Operating Temperature Range | -20°C / 85°C |
| Termination | Faston/Solder Pins |
| IP Protection Rating | IP 64 (IP40 Switching unit) |
| Unit Weight | 40g |
| Factory Pack Qty | 10 |
