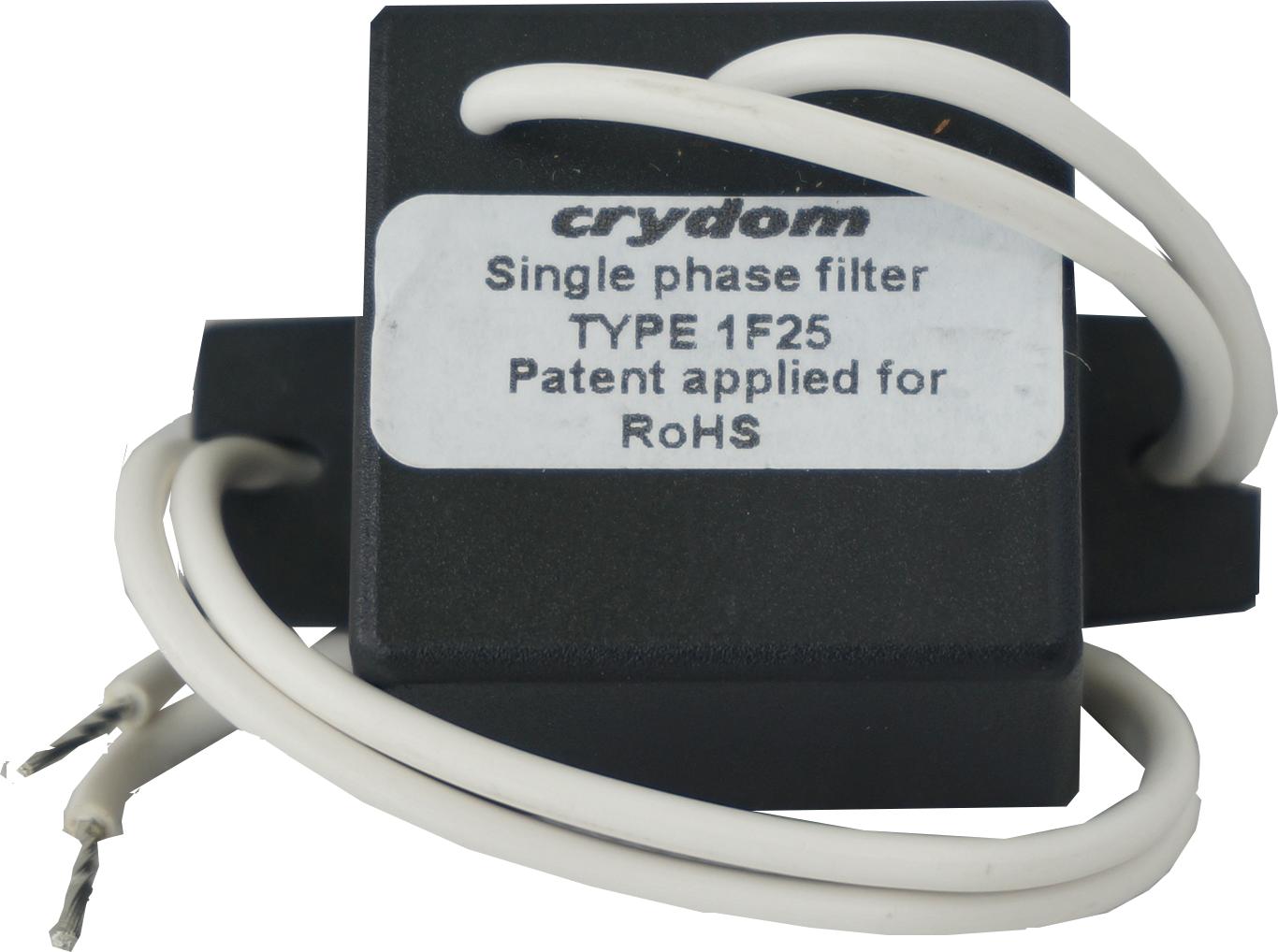

1F25 Single Phase EMC Power Line Filter - EMI Noise Suppression for Home & Industrial Electronics, Appliances, and Medical Equipment
$24.22 $44.05
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:29 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:10435394
Guranteed safe checkout
Product Description
Crydom 1F25, 1 Stage EMC (RFI) Line Filter for Power Modules and SSR
Features
- Line filter in standard and medical version
- 1-stage - standard attenuation 150-250kHz
Characteristics
- Designed for standard applications
- Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated
- Universal line filter for standard applications
- Suitable for use in equipment according to IEC/UL 60950
Other Versions on Request
- Version with wire connection
- Version with varistor for overvoltage protection
Specification
| Crydom Part Number | 1F25 |
| Rated Voltage | 275V |
| Rated Current | N/A |
| Filter Stages | 1 Stage |
| Operating Temperature | -25°C to 100°C |
| Filter Type | Standard Attenuation |
| Leakage Current | 0.40mA |
| Mounting | Panel Mount |
| Material | PolyCarbonate |
| Termination Style | Flying leads |
| Weight | 30g |
| Factory Pack Qty | 1 |
| Protection Class | N/A |
| Isolation | N/A |
| VDE/UL/CSA/ROHS | Yes |
Datasheet
App Notes
- Overvoltage Protection "P" Option MOV
- SSR Reliability Whitepaper
- 3 Phase Motors and Heating Applications
- 3 Phase Motor Reversing
- How to test a SSR
- SSR Precautions
- SSR Life Expectancy MTBF
- ROHS & Reach Statement
