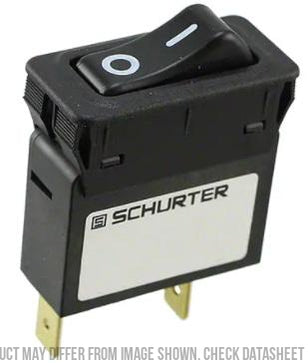

4435.0173 TA35 CFTBF050C0 1 Pole Rocker Switch - Non-Latched, 5A 240VAC/60VDC, Thermal Overload Protection, Faston Connector, Black with White I/O (Ideal for Industrial Equipment, Home Appliances & Electrical Control Panels)
$14.49 $26.35
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:11580350
Guranteed safe checkout
Product Description
Schurter 4435.0173 TA35-CFTBF050C0, 1 Pole Rocker Switch, Non Latched, 5 AMP, 240VAC, 60VDC, Thermal Overload Protection, Faston Connection, Black with White I/O Embossed
Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction
Description
- Rocker Switch
- 1-pole - Power tools
- Manual ON/OFF type
- Quick connect terminals 6.3 x 0.8 mm
Features :
- < 3mS Trip Delay Time
- 1 Pole Disconnect
- 1kA Short Circuit Rating
- Suitable for 500VDC Isolation
Applications:
- Power Tools
- Household Equipment
- Power Supplies and Chargers
- Industrial Appliances
Standards :
- IEC 60934
- 2 x Ir: 5000 Cycles
- 500VDC Insulation Resistance
- 1.5kV (50Hz) Dielectric Strength
- Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip
- @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips
Specification
| Schurter Part Number | 4435.0173 TA35-CFTBF050C0 |
| Functions | 1 Pole Rocker Switch, with 1 Bimetal Thermal Overload Circuit Breaker |
| Nominal Voltage | 240VAC @ 50Hz or 60VDC |
| Nominal Current Range | 5 Amp RMS |
| Trip Delay Time | < 3ms |
| Rated Frequency | 50/60 Hz |
| Operating Temperature | -25 to 60 Deg C |
| Insulation Resistance | 500VDC |
| Illumination | None |
| Dielectric Strength | 1.5kV (50Hz) |
| Short Circuit Current | 1kA |
| Approvals | UL, CSA |
| Standards | IEC 6094 |
| Weight | 10g |
| Enclosure Material | UL94 |
| Factory Pack Qty | 1 |
