Product Description

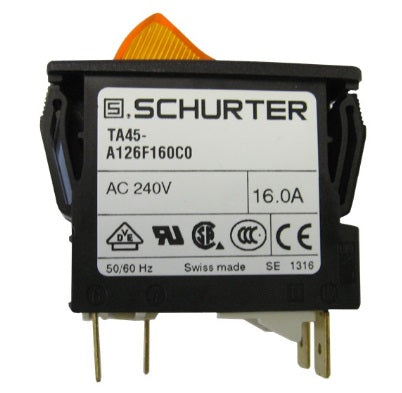

Schurter, 4430.1693 TA45-A126F160E3, 2 Pole Rocker Switch, 16 AMP, 240VAC, 1 Pole Thermal Overload Protection, 230VAC Undervoltage Release, Quick Connection, Embossed Orange Transparent Illumination

Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction

Description

• Rocker Switch
• Thermal circuit breaker
• 2-pole - Power tools
• Manual ON/OFF type
• Quick connect terminals 6.3 x 0.8 mm

Features :

• < 3mS Trip Delay Time
• 1 Pole Disconnect
• 1kA Short Circuit Rating
• Suitable for 500VDC Isolation

Applications:

• Power Tools
• Household Equipment
• Power Supplies and Chargers
• Industrial Appliances

Standards :

• IEC 60934
• 2 x Ir: 5000 Cycles
• 500VDC Insulation Resistance
• 1.5kV (50Hz) Dielectric Strength
• Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip
• @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips
