IEC C14 Power Distribution Unit - 1x C14 Male to 4x C14 Female Outlets with Snap-in Mounting for 2mm Panels | Quick Connect Terminals 4.8x0.8mm | Ideal for Server Racks, Data Centers & Industrial Equipment
$28.59 $51.99
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:11 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:11630383
Guranteed safe checkout
Product Description

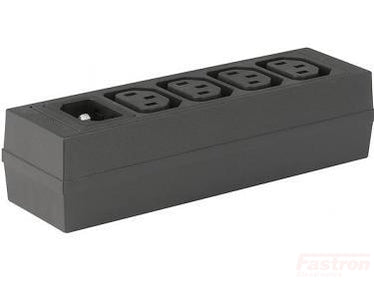

Schurter 4747.0000, Distribution Unit with IEC Appliance Inlet C14/M to 4 x C14/F Outlet, Snap-in Mounting, Front Side, Quick connect terminals 4.8 x 0.8 mm, 2mm panel Thickness
Features
- 1 x C14 Male in 4 x C14 Female out, Ganged Distribution Outlet
- C14 Socket acc to IEC 60320-1
- 70 °C pin Temperature
- Suitable for use in equipment according to IEC/UL 60950
Characteristics
- UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 10A, Protection Class I
- Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1
Specification
| Schurter Part Number | 4747.0000 |
| Rated Voltage | 250V |
| Rated Current | 10A (CE) 15A (UL/CSA) |
| No of Outlets | 4 |
| Operating Temperature | -25°C to 120°C |
| Filter Type | N/A |
| Fuse Holder | N/A |
| Line Switch | N/A |
| Mounting | Loose |
| Material | Thermoplastic, black, UL 94V-0 |
| Termination Style | 1 x C14 Male Inlet, 4 x Female C14 Outlet |
| Weight | 550g |
| Factory Pack Qty | 1 |
| Protection Class | From front side IP30 acc. to IEC 60529 |
| Isolation | 2kV (L-N, L/N-E) |
| VDE/UL/CSA/CE/ROHS | Yes |
Datasheet
