Product Description

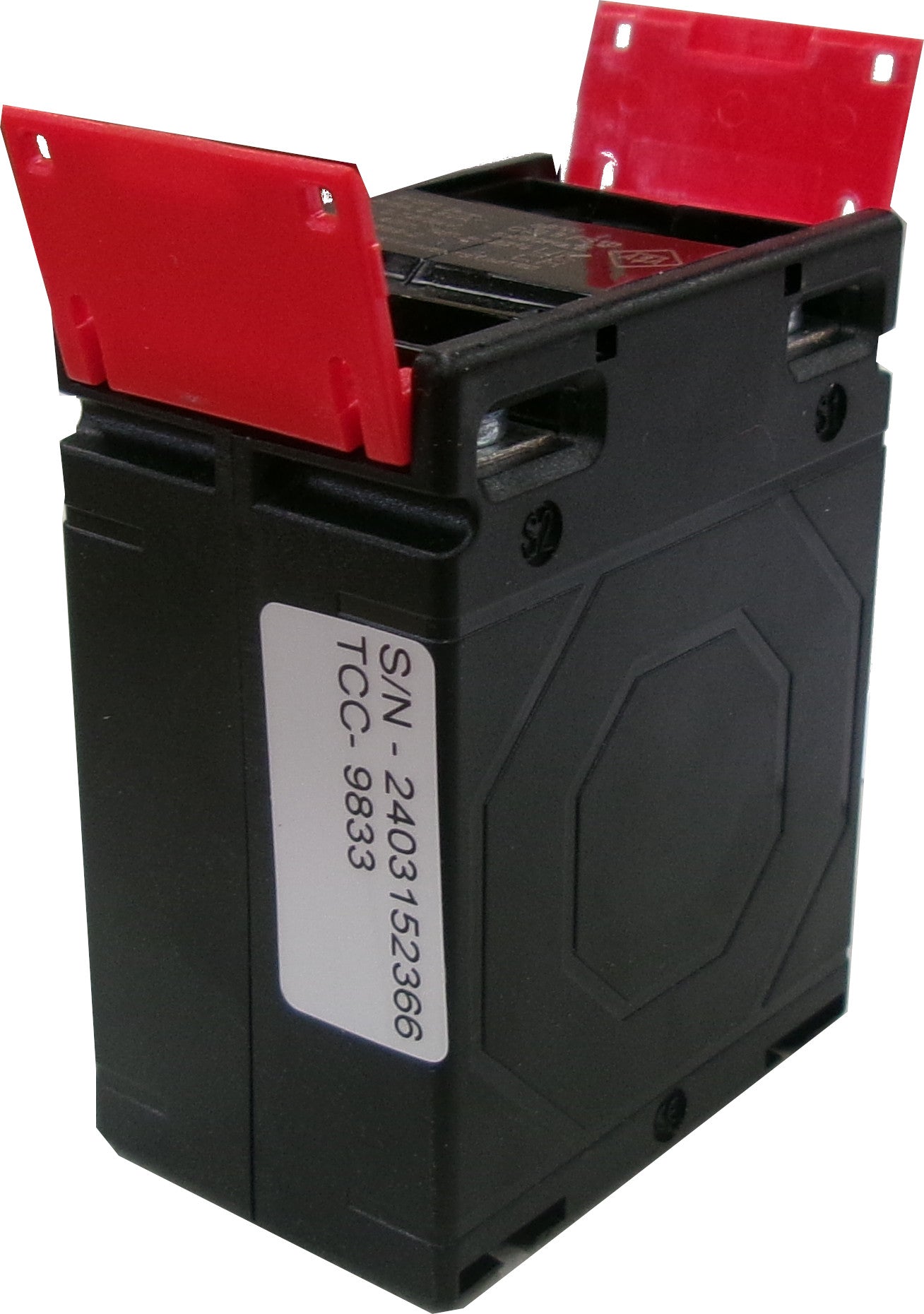

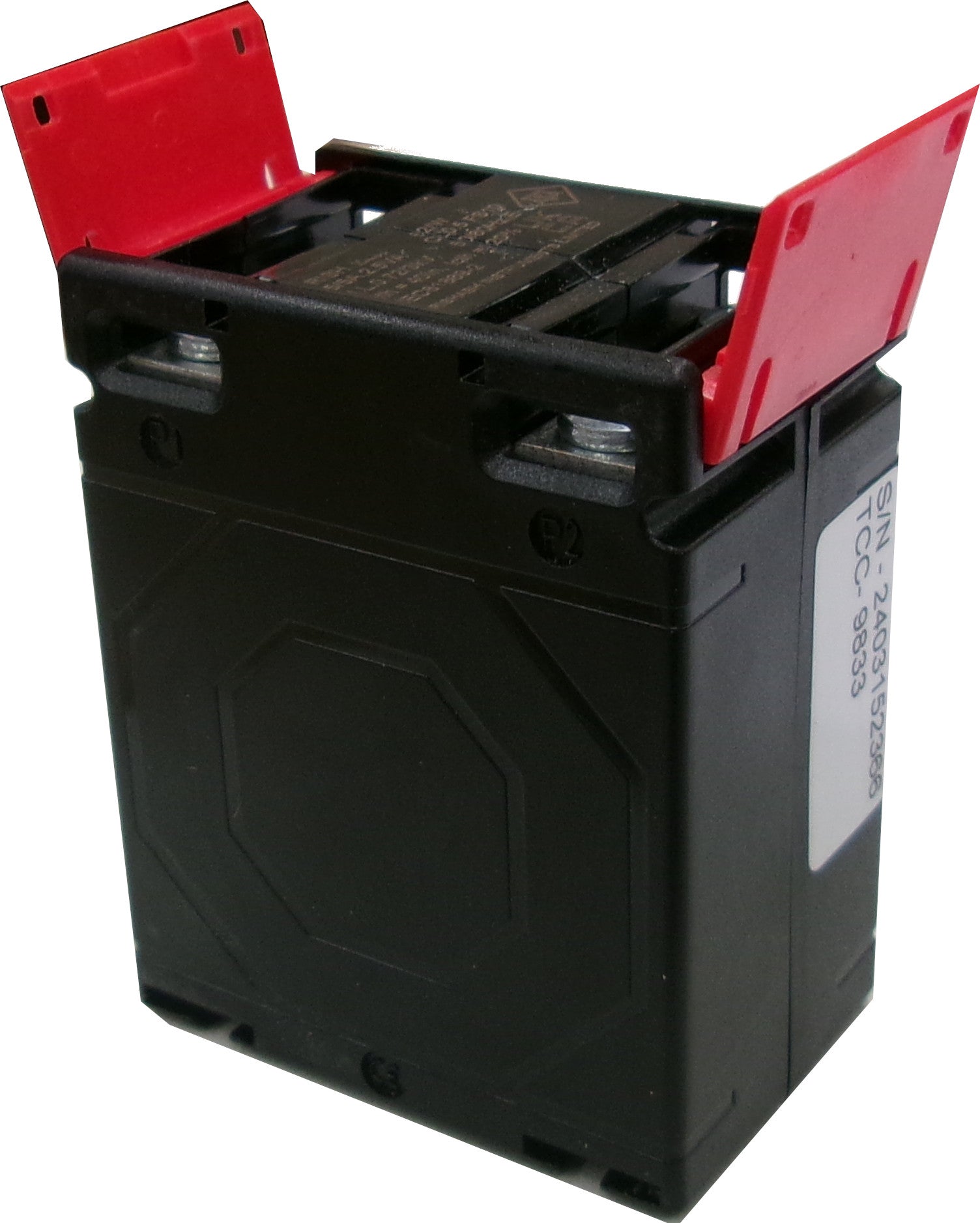

Rishabh Rish Xmer 62/W(40) 5/5A Class 0.5, 2.5VA, Isolaton Current Transformer, without Aperture
Features
- DIN Rail Mounting Clip Included
- Built In Sealable Terminal Covers
- Mounting Feet Supplied
- Narrow Width (45mm)
- Self Powered
- Rated System Voltage 0.72/3kV
- IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Applications
- Metering Equipment
- Energy Monitoring
- AC Power Control Systems
- Power Factor Correction
- Power Quality Measurements
Specification
| Rishabh Part Number | Rish Xmer 62/W(40) 5/5A Class 0.5 |
| Technology | AC Current Transformer |
| Ratio | 5/5 |
| Aperture Size | No Apeture. Cable passed through P1(Incoming) and P2(Load Side) terminals |
| VA Rating | 2.5VA |
| Accuracy Class | Class 0.5 |
| Output | 5 Amp AC (+20%) |
| Isolation | 3kV (AC, 50Hz, 1 min) |
| Bandwidth | 50-60Hz |
| Mounting Style | Panel Mount/Din Rail Mount |
| Operating Temperature Range | -30°C / 85°C |
| Continuous Current (max) | 5Amp x 1.2 |
| Termination Style | Screw |
| Unit Weight | 300g |
| Factory Pack Qty | 9 |
