Product Description

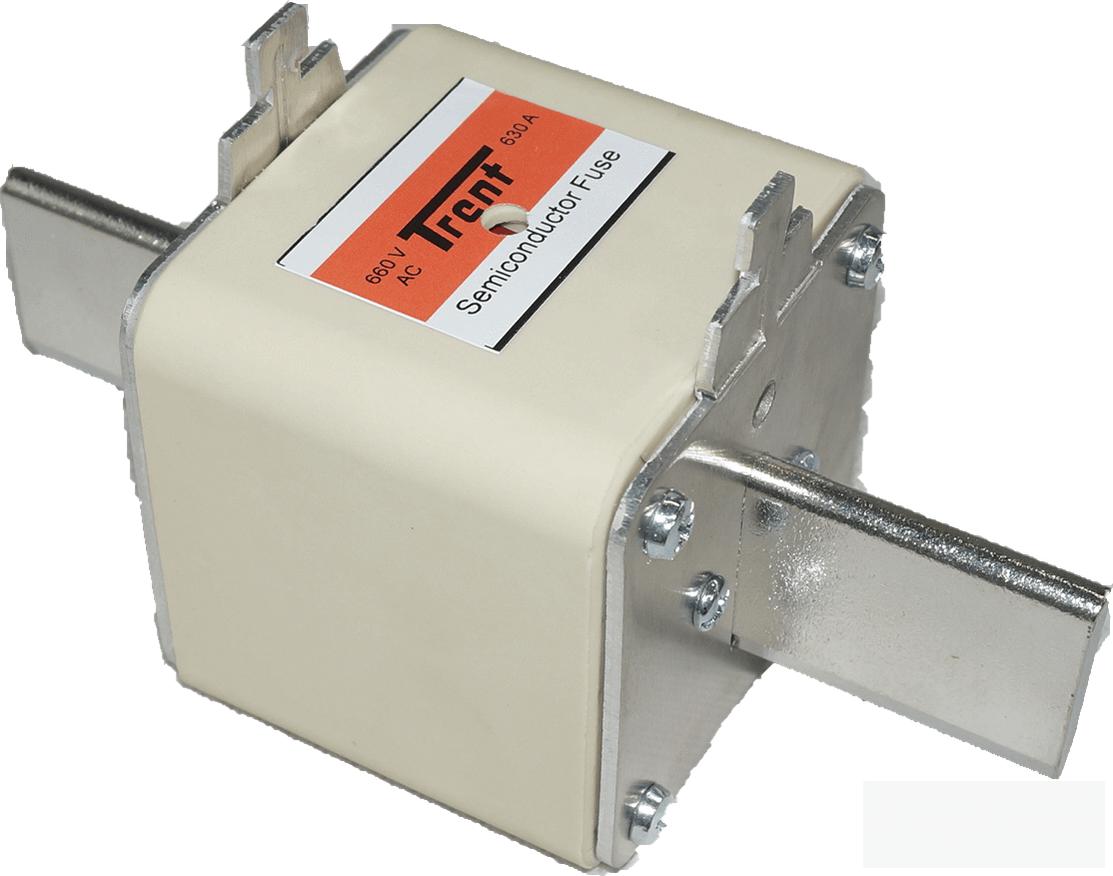

Trent 630EU690V-100kA Series 690V Semiconductor I²t Fuse European Blade NH Type (Replaces NH3 TF Shaltvermogen)
Features
- Square Body DIN 43 653
- Wide Range of I²t
- Ratings up to 2000 Amp
- Fuse Holder Mounted
- IEC Standard 60269.1 AND 4
- 690 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | 630EU690V-100kA |
| Fuse Type | I²t AR Class HRC |
| Nominal Voltage | 690VAC @ 50Hz |
| I²t Rating (660V) | |
| Nominal Current (RMS + DC) | 630 Amp |
| Tested Breaking Capacity | 200kA @ 690VAC |
| Dimensions | 69 x 150 x 69mm (NH3) |
| Indicator | Tag |
| Mounting Style | Fuse Holder |
| Operating Temperature Range | -40°C / 125°C |
| Watts Dissipation | 90WW |
| Termination Style | Blade Fuse Holder |
| Unit Weight | 400g |
| Factory Pack Qty | 3 |
