AKR 50 C420L AC Current Sensor - 10/20/50 Amp Selectable True RMS with 4-20mA Output - 19mm Round Aperture - Ideal for Industrial Automation, Energy Monitoring, and Electrical Equipment Testing
$348.97 $634.5
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:20 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:13135088
Guranteed safe checkout
Product Description

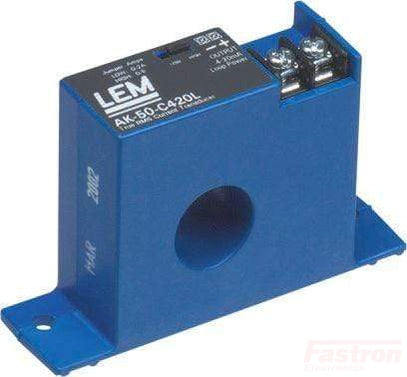

LEM AKR Series True RMS Solid Core AC Current Sensor with Process Outputs
Compact and versatile Solid Core AC current sensor, selectable 10, 20, 50 Amp True RMS. Choice of output types: 4-20 mA, 0-5 V or 0-10 V
Features
- Solid Core
- True RMS output
- 4-20mA current output
- Busbar, or panel mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for cable up to ⌀19mm
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Kit available
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| LEM Part Number | AK 50 C420L, |
| Technology | AC Current Transformer with Process Output |
| ROHS | Yes |
| Supply Voltage | 24VDC Loop Powered |
| Nominal Current (RMS + DC) | 10,20,50 Amp Selectable |
| Maximum Measurement Current (Peak) | 17,34,85 Amp |
| Output | 4-20mA True RMS |
| Aperture | ⌀19mm |
| Isolation | 3kV (AC, 50Hz, 1 min) |
| Bandwidth | 50-60Hz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | 2 x UNC8 Cylindric Head |
| Unit Weight | 120g |
| Factory Pack Qty | 6 |
