AK 200 C10 AC Current Sensor - 100/150/200 Amp Selectable Range, 0-10V RMS Output, 19mm Round Aperture - Perfect for Solar Panel Monitoring, Industrial Equipment, and Electrical Load Measurement
$188.98 $343.6
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:15859246
Guranteed safe checkout
Product Description

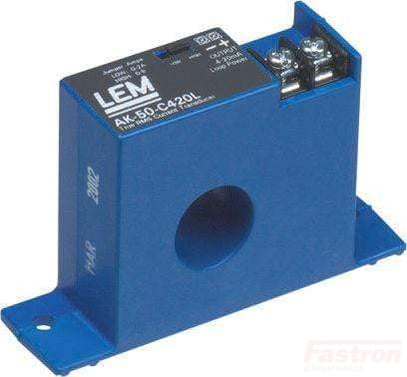

LEM AK 200 C10 Series Solid Core AC/DC Hall Effect Sensor with Process Outputs
Compact and versatile Solid Core AC current sensor, selectable 100, 150, 200 Amp Average RMS. Choice of output types: 4-20 mA, 0-5 V or 0-10 V
Features
- Solid Core
- Average RMS output
- 0-10V voltage output
- Busbar, or panel mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for cable up to ⌀19mm
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Kit available
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will nto drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| LEM Part Number | AK 200 C10 |
| Technology | AC Current Transformer with Process Output |
| ROHS | Yes |
| Supply Voltage | Self Powered |
| Nominal Current (RMS + DC) | 100,150,200 Amp Selectable |
| Maximum Measurement Current (Peak) | 120,180,240 Amp |
| Output | 0-10V Average RMS |
| Aperture | ⌀19mm |
| Isolation | 3kV (AC, 50Hz, 1 min) |
| Bandwidth | 50-60Hz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | 2 x UNC8 Cylindric Head |
| Unit Weight | 120g |
| Factory Pack Qty | 6 |
