TK2R Delay On De-Energization Timer, 2 Pole 8A SPDT (0.6s-160s), 24VDC/12-240VAC - Perfect for Industrial Automation & Control Systems
$125.13 $227.52
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:18 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:15656785
Guranteed safe checkout
Product Description

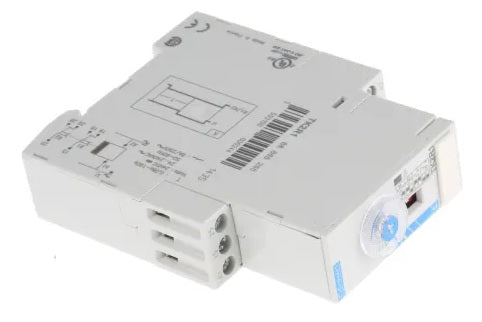

Crouzet 88865265 TK2R Double Pole Multifunction Timer with DPDT CO Contacts
TK2R Timers Syrline 17.5 mm - 2 Relays 8A :
- Multi-range (0.5s - 10days)
- Multi-voltage 24VDC or 12 - 240VAC
- LED status indicator
- Possibility of external load connection in parallel to the control input
Multifunction Timers Includes The Following :
- Function K-2 Delay on de-energisation True delay OFF 2 relays
Specification
| Crouzet Part Number | 88865265 (Syr-Line Timer Single Pole Double Throw 2 x 8A C/O, 24VDC or 12 - 240VAC, 22.5 mm) |
| Function | Dual Function Timer K-2 |
| Nominal Voltage | 24VDC or 12 - 240VAC |
| Digital Output | 2 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp |
| Min Breaking Current | 10mA/12VDC |
| Timing Ranges | Selectable 0.6→160s |
| Minimum Pulse Duration | 30ms/100ms with load |
| Repeatability | 0.5% |
| Reset Time | 120ms |
| Isolation | 4kV |
| Repetition Accuracy | 0.5% |
| Threshold Adjustment Range | 10 → 100 % of the range |
| Termination Style | Screw |
| Weight | 80g |
| Certification | CE, cULus,CCC, ROHS, Reach, WEEE |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
