Chronos2 Timer Relay 20-30VDC & 20-264VAC, Replacement for BM1R05MV1 (5 Amp) - Industrial Automation, HVAC Systems, and Electrical Control Panels
$95.34 $173.35
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:9 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:83389054
Guranteed safe checkout
Product Description

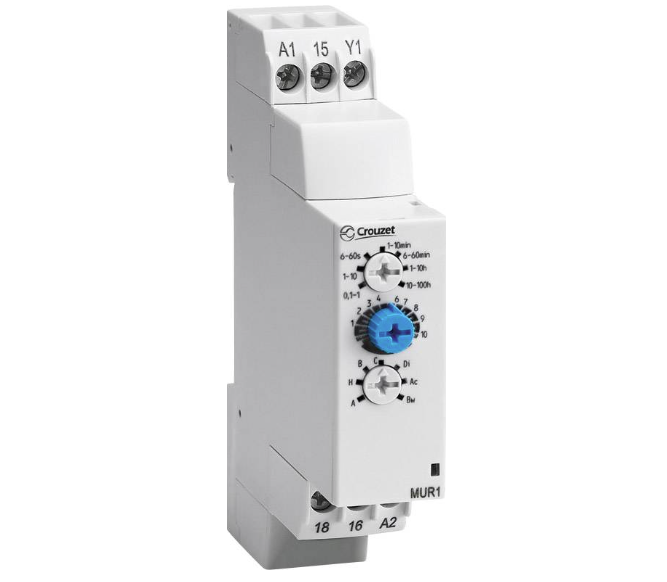

Timer Chronos2 MUR1 20-30VDC & 20- 264 VAC
MUR1 Timers Syrline 17.5 mm - 1 C/O Relay 8A :
- Multi-range (0.5s - 100hrs)
- Multi-voltage 12 →240 V AC/DC
- LED status indicator
- Possibility of external load connection in parallel to the control input
3-wire PNP sensor compatible
Multifunction Timers Includes The Following :
- Function A Delay on energisation 1 relay
- Function Ac Timing after closing and opening of control contact 1 relay
- Function At Timing on energisation with memory 1 relay
- Function B Timing on impulse one shot 1 relay
- Function Bw Timing pulse output (adjustable)
- Function C Timing after impulse 1 relay
- Function D Flip-flop Pause start 1 relay
- Function Di Flip-flop Pulse start 1 relay
- Function H Timing on energisation 1 relay
- Function Ht Delay on energisation with memory 1 relay
Specification
| Crouzet Part Number | 88827103 (Syr-Line Timer SinglePole Double Throw 1 x 8A Multifunction, 12 - 240VAC/DC, 17.5 mm) |
| Function | Multifunction Timer A - Ac - At - B - Bw - C - D - Di - H - Ht |
| Nominal Voltage | 12 → 240 V AC/DC |
| Digital Output | 1 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp |
| Min Breaking Current | 10mA/12VDC |
| Timing Ranges | Selectable 1s - 10s - 1 min - 10min - 1h, 10h, 100h |
| Minimum Pulse Duration | 30ms/100ms with load |
| Repeatability | 0.5% |
| Reset Time | 120ms |
| Isolation | 4kV |
| Repetition Accuracy | 0.5% |
| Threshold Adjustment Range | 10 → 100 % of the range |
| Termination Style | Screw |
| Weight | 80g |
| Certification | CE, cULus,CCC, ROHS, Reach, WEEE |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
Cross Reference
- Can Be Replaced by (5 Amp) or
- Replaces 88826135
