A2450G Solid State Relay - 50A Single Phase SSR, 90-280VAC Control, 24-280VAC Load with Status LED - Ideal for Industrial Automation, HVAC Systems, and Power Control Applications
$55.72 $101.31
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:17 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:16471454
Guranteed safe checkout
Product Description

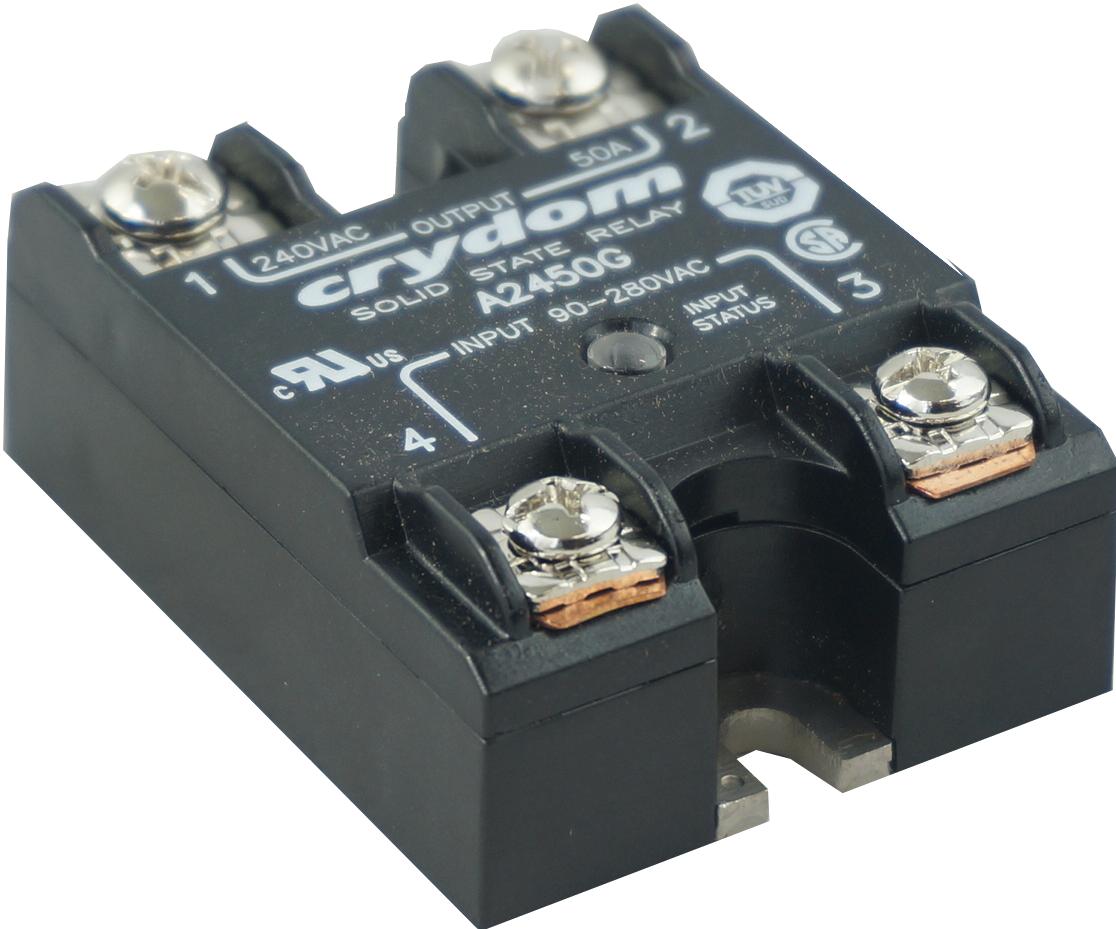

Crydom A2450G, Solid State Relay, Single Phase 90-280VAC Control, 50A, 24-280VAC Load, w/status LED
Features
- • Ratings from 25A to 125 Amp @ 24-280 VAC
- • SCR output for heavy industrial loads
- • Zero voltage or instantaneous turn-on outputs
- • UL/CSA/VDE Approved, CE Compliant to EN60950-1
- • Improved SEMS screw and washer
- • Redesigned housing with anti-rotation barriers
- • AC & DC control types
- • Direct bond copper substrate
- • EMC compliant to Level 3
- • Direct power lead frame
- • Epoxy free design
Spec
| Crydom Part Number | A2450G |
| Switching Type | Zero Crossing |
| ROHS | Yes () |
| Control Voltage | 90 - 280VAC |
| Load Current | 50 Amp (rms) |
| Surge Capability | 597 Amp (peak) |
| Special Feature | LED Status Indicator |
| Mounting Style | Panel Mount |
| Load Voltage Range | 24-280VAC |
| EMC Compliant | Level 3 |
| Termination Style | Screw |
| Unit Weight | 75g |
| Factory Pack Qty | 20 |
Datasheet
Please note Changes from Gen 3 to Gen 4 (current) package design
App Notes
- Effect of Forced Air Cooling
- Fuse Protection of SSR's
- Overvoltage Protection "P" Option MOV
- SSR Reliability Whitepaper
- 3 Phase Motors and Heating Applications
- 3 Phase Motor Reversing
- How to test a SSR
- SSR Precautions
- SSR Life Expectancy MTBF
- ROHS & Reach Statement
