Fluke 7526A High-Accuracy Process Calibrator 230V - Ideal for Industrial Instrument Calibration & Electrical Testing
$27.5 $50
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:17 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:17369544
Guranteed safe checkout
Product Description

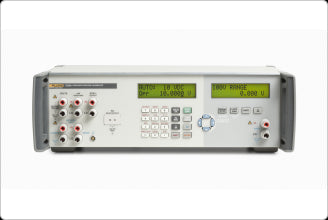

7526A Precision Process Calibrator, 230V Calibration Equipment
(Fluke Registration required before purchase. Please Laserman for more information on )
(item no. 4232125, 4232133)
Calibrate RTD and thermocouple readouts, pressure gauges, temperature transmitters, digital process simulators, data loggers, multimeters and more using this precision process calibrator.
Less expensive than high-end multi-product calibrators, yet more precise and versatile than handheld field calibrators.
FEATURES
- Sources and measures DC voltage, current, resistance, RTDs and thermocouples
- Extend pressure measurement range with any Fluke 750P and 700P Series Pressure Modules
- Includes 24V DC transmitter loop power supply
- Measures 4 to 20mA loop current
- Includes automated switch-test function
- Accepts ITS-90 coefficients for accurate SPRT measurements
- Compatible with MET/CAL Calibration Software
- Includes certificate of calibration traceable to national standards (optional A2LA accredited calibration available upon request)
SPECIFICATIONS
| Standard Interface | RS-232, IEEE-488 (GPIB) |
| Temperature Performance | Operating: 0 to 50°C Calibration (tcal): 18 to 28°C Storage: -20 to 70°C |
| Electromagnetic Compatibility | CE: Conforms to EN61326 (operation in controlled EM environments) |
| Temperature Coefficient | For temperatures outside tcal 5°C is 10% of the 90-day specification (or 1 year if applicable) per °C |
| Relative Humidity | Operating: <80% to 30°C <70% to 40°C <40% to 50°C |
| Altitude | Operating: 9,800ft (3,000m) max Non-operating: 40,000ft (12,200m) max |
| Safety | EN/IEC 61010-1:2010 3rd Edition, UL 61010-1:2012, CAN/CSA 22.2 No. 61010-1-12 |
| Analog Low Isolation | 20V |
| Line Power | 120V~: 100 to 120V 240V~: 220 to 240V |
| Line Frequency | 47 to 63Hz |
| Line Voltage Variation | ±10% about setting |
| Power Consumption | 15VA maximum |
| Dimensions | Height: 5.75in (14.6cm) Width: 17.5in (44.5cm) Depth: 11.75in (29.8cm) |
| Weight (without options) | 9.35lbs (4.24kg) |
