A53TP50D + HS212DR F 3-Phase Solid State Relay with Heatsink - 90-280VAC Control, 36A/Phase @40°C, 48-530VAC Load, LED Indicator | Industrial Automation, HVAC Systems, Motor Control
$344.82 $626.96
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:24 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:18714966
Guranteed safe checkout
Product Description

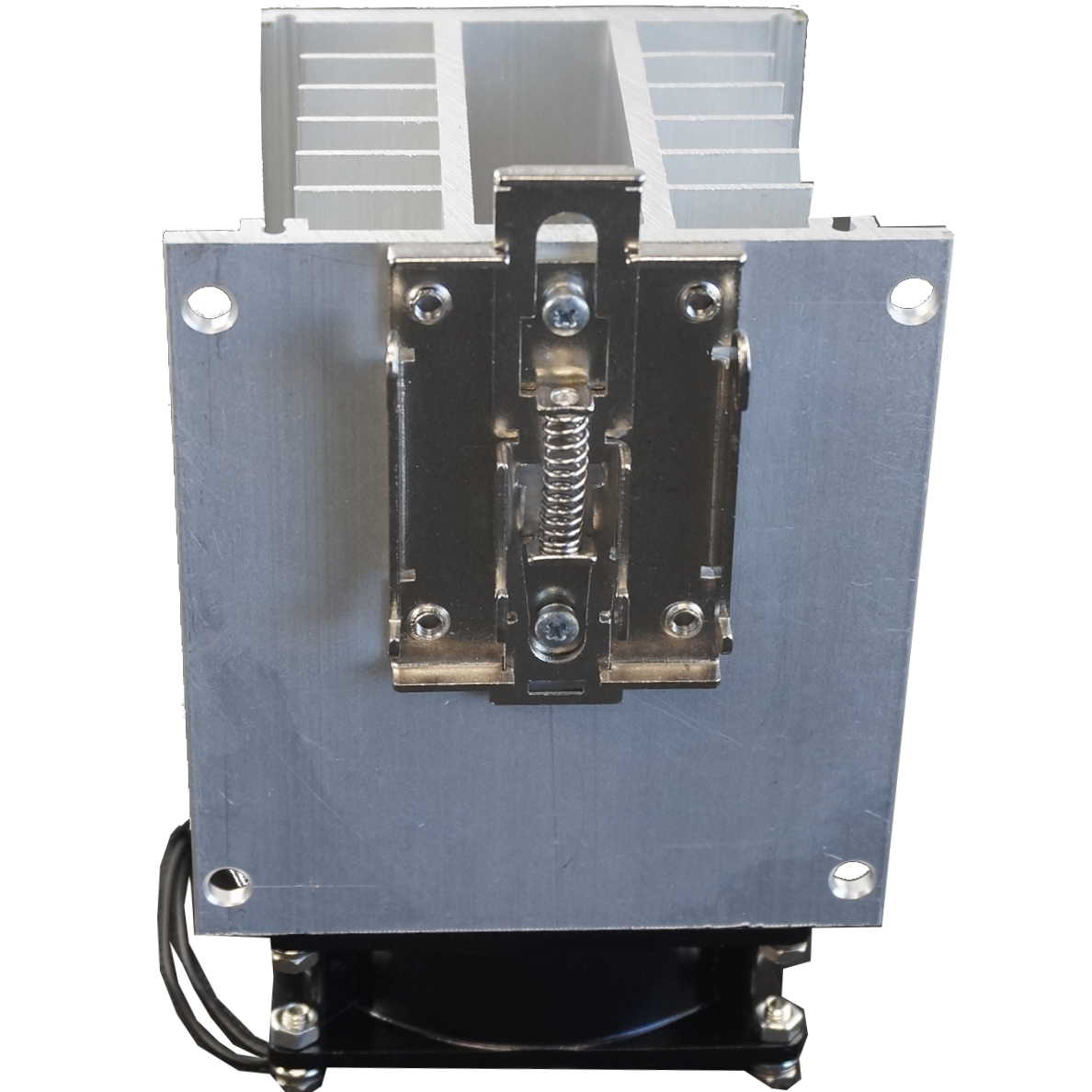

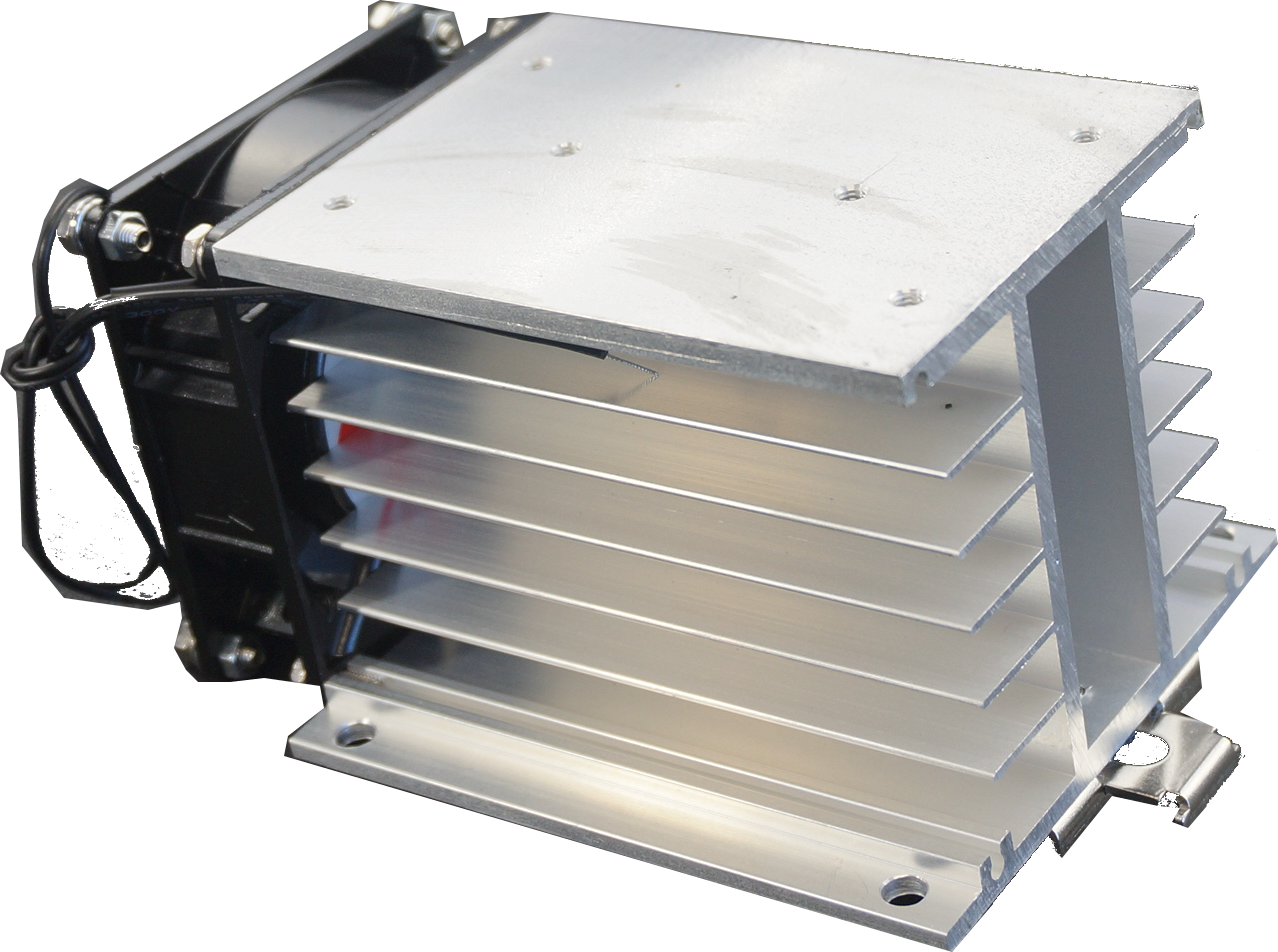

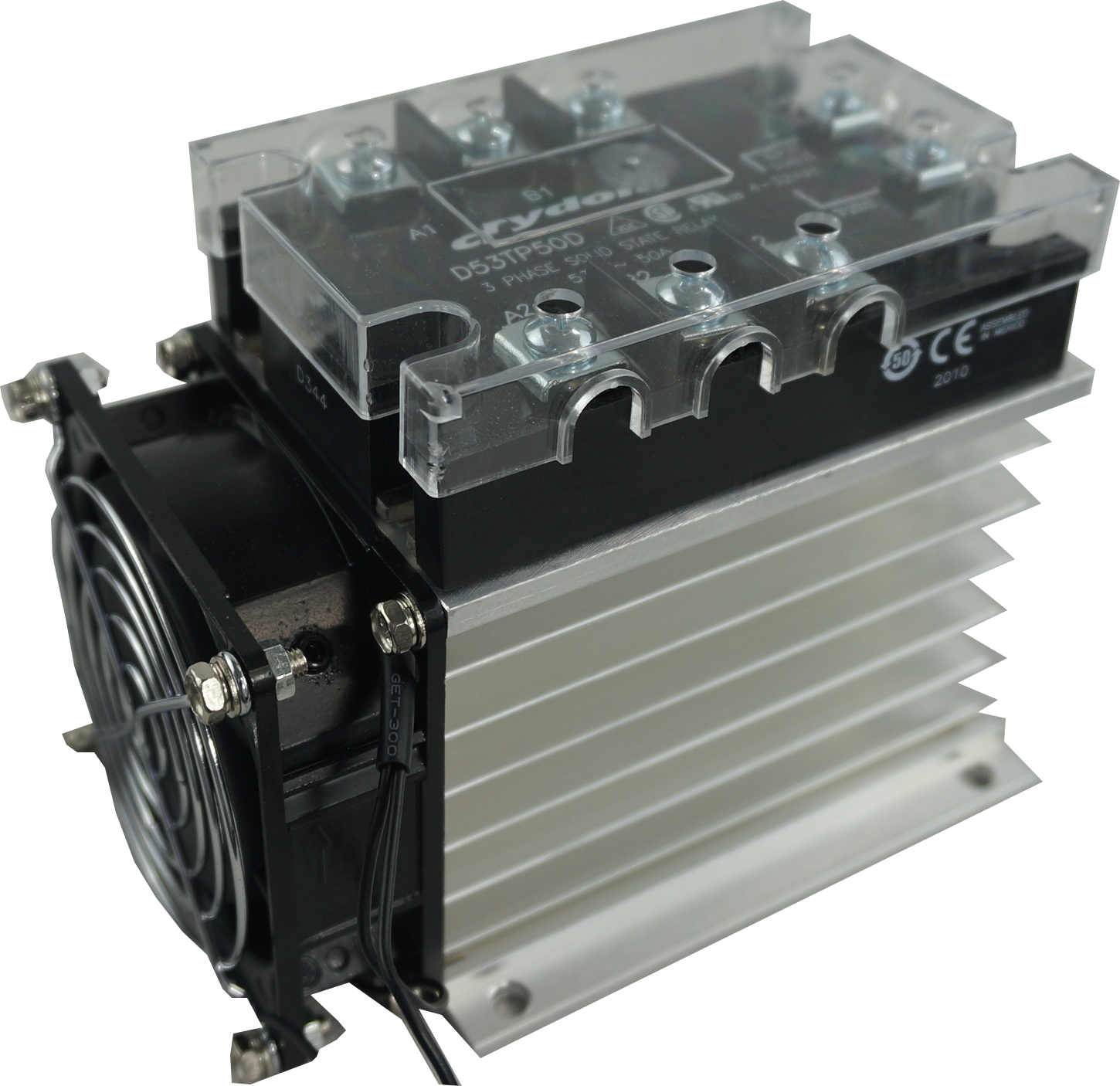

A53TP50D + HS212DR-F, Solid State Relay, and Heatsink Assembly, 3 Phase 90-280VAC Control, 36 Amp per phase @ 40 Deg C, 48-530VAC Load, LED Status Indicator
Features
- Ratings from 25A to 50 Amp @ 70-530 VAC
- SCR output for heavy industrial loads
- Zero voltage or Instantaneous turn-on outputs
- UL/CE/ROHS Approved
- IP20 Cover Available
- AC & DC control types
- Direct bond copper substrate
- Direct power lead frame
- Epoxy free design
Spec
| Crydom Part Number | D53TP50D + HS212DR-F |
| Switching Type | Zero Crossing |
| ROHS/CE/UL | Yes |
| Control Voltage | 90-280VAC |
| Load Current | 3 x 36 Amp (rms) per Phase |
| Surge Capability | 597 Amp (peak) |
| Special Feature | LED Status Indicator |
| Mounting Style | Din Rail Mount |
| Load Voltage Range | 48-530VAC |
| EMC Compliant | Level 3 |
| Termination Style | Screw |
| Unit Weight | 315g |
| Factory Pack Qty | 10 |
Datasheet
App Notes
- Effect of Forced Air Cooling
- Fuse Protection of SSR's
- Overvoltage Protection "P" Option MOV
- SSR Reliability Whitepaper
- 3 Phase Motors and Heating Applications
- 3 Phase Motor Reversing
- How to test a SSR
- SSR Precautions
- SSR Life Expectancy MTBF
- ROHS & Reach Statement
