275BBF Series 690V 275Amp aR Semiconductor Fuse - BS88 Style 200kA Breaking Capacity - Ideal for Industrial Motor Protection & Power Distribution Systems
$58.19 $105.8
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:16 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:22350941
Guranteed safe checkout
Product Description

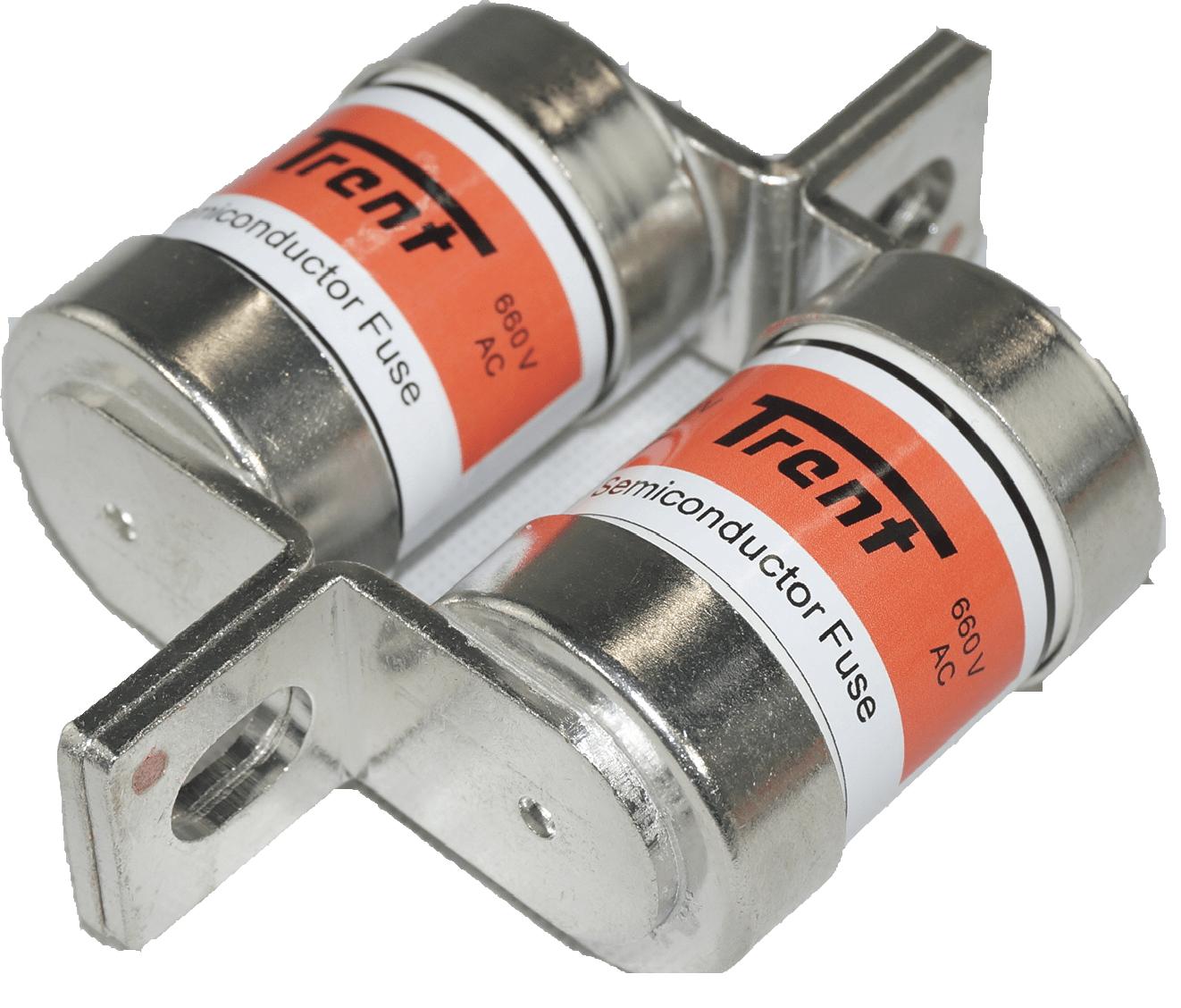

Trent 275BBF Series 690V, 275 Amp aR Semiconductor I²t Fuse BS88 Style
Features
- British Standard Fuse Links Package
- Wide Range of I²t
- Ratings up to 1000 Amp
- Busbar or Standoff Mounting
- IEC Standard 60269.1 AND 4
- 690 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | 275BBF |
| Fuse Type | I²t aR Class |
| Nominal Voltage | 690VAC @ 50Hz |
| I²t Rating | 43000 A²/s |
| Nominal Current (RMS + DC) | 275 Amp |
| Tested Breaking Capacity | 200kA @ 690VAC |

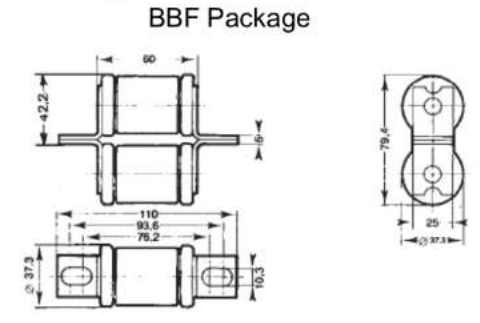

| Dimensions | 79.4 x 24 x 110mm |
| Hole Centers | 75.2 x 93.6mm |
| Mounting Style | Busbar or Panel Mount with Standoff |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 62W |
| Termination Style | M6 |
| Unit Weight | 400g |
| Factory Pack Qty | 10 |
