25NAF Series 250V 25Amp aR Semiconductor Fuse - BS88 Style 200kA Breaking Capacity - Replacement for 10NAF 15NAF 16NAF 20NAF - Ideal for Industrial Equipment, Power Electronics, and Circuit Protection
$9.24 $16.8
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:23055774
Guranteed safe checkout
Product Description
Trent 25NAF Series 250V, 25 Amp aR Semiconductor I²t Fuse BS88 Style, Replaces 10NAF, 15NAF, 16NAF, 20NAF
Features
- Equivalent to Mersen 2.5 URGS 17/25 R076651, ETI BS17UQ/41/25A/240V 004750106
- British Standard Fuse Links Package
- Wide Range of I²t
- Ratings up to 1050 Amp
- Busbar or Standoff Mounting
- IEC Standard 60269.1 AND 4
- 250 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | 25NAF |
| Fuse Type | I²t AR Class |
| Nominal Voltage | 250VAC @ 50Hz |
| I²t Rating | 130 A²/s |
| Nominal Current (RMS + DC) | 25 Amp |
| Tested Breaking Capacity | 200kA @ 250VAC |

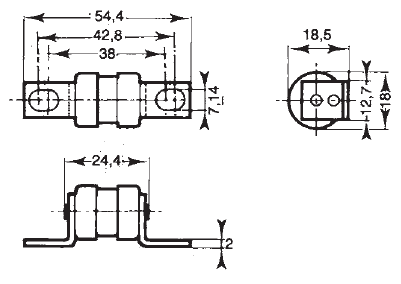

| Dimensions | 54 x 18mm |
| Hole Centers | 38 x 42.8mm |
| Mounting Style | Busbar or Panel Mount with Standoff |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 4.8W |
| Termination Style | M6 |
| Unit Weight | 30g |
| Factory Pack Qty | 10 |
