Product Description

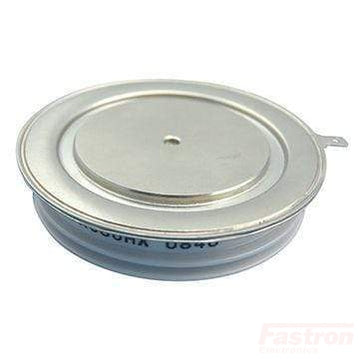

AEGIS A5A:1150.22, Rectifier Diode PUK 960 Amp, 2200V 41/14
Features
- Very low forward voltage drop
- Very low leakage current
- International standard package
- 41/14 Package
- Press Mounted
- Double or Single Sided Cooling
Applications
- Power Supplies
- Rectifier for drives applications
- Uncontrolled Rectifiers
- Rectifiers for UPS
- Battery Chargers
- Field Supply for DC Motors
- Water Cooled Rectifiers
- DC Substation Blocking Diode
- Large Generators
Specification
| AEGIS Part Number | A5A:1150.22 |
| Vrrm | 2200V |
| Diode Configuration | Diode Capsule (PUK) |
| IF(av) @ 85 Deg C | 960 Amp |
| Package Size | ø41 x 14mm |
| Itsm | 12.2 kA |
| VF(to) | 0.81V |
| Tj(max) | 180°C |
| rF | 0.396mΩ |
| Gate Terminals | N/A |
| R th(j-c) (double sided cooled 180°sin) | 0.045°C/W |
| R th(c-h) (double sided cooled) | 0.02°C/W |
| Weight | 75g |
| Clamping Force | 3.8 - 7.6kN |
| Factory Pack Qty | 12 |
| Certification | ROHS |
| AEGIS Headquarters | BRAZIL |
