80NAF Semiconductor Fuse 250VAC 80 Amp aR - High Performance Protection for Industrial Equipment, Solar Systems, and Power Electronics
$10.83 $19.7
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:25 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:24274603
Guranteed safe checkout
Product Description
Trent 80NAF Series 250V, 80 Amp Semiconductor I²t Fuse BS88 Style, aR
Features
- Equivalent to Mersen 2.5 URGS 17/75 Z085559, ETI BS17UQ/41/80A/240V 004750119
- British Standard Fuse Links Package
- Wide Range of I²t
- Ratings up to 1050 Amp
- Busbar or Standoff Mounting
- IEC Standard 60269.1 AND 4
- 250 V Voltage Rating complying with IEC 33
Applications
- Protection of High Powered Semiconductors according to I²t
- Short Circuit Protection
- DC or AC Motor I²t Protection
- Battery Fuse
Specification
| Trent Part Number | 80NAF |
| Fuse Type | I²t AR Class |
| Nominal Voltage | 250VAC @ 50Hz |
| I²t Rating | 1800 A²/s |
| Nominal Current (RMS + DC) | 80 Amp |
| Tested Breaking Capacity | 100kA @ 250VAC |

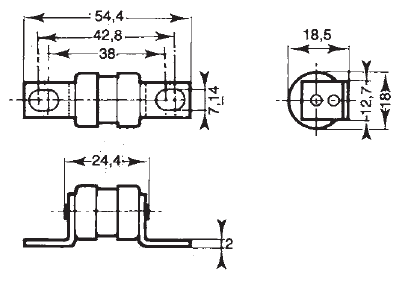

| Dimensions | 54 x 18mm |
| Hole Centers | 38 x 42.8mm |
| Mounting Style | Busbar or Panel Mount with Standoff |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 14W |
| Termination Style | M6 |
| Unit Weight | 30g |
| Factory Pack Qty | 10 |
