10PCV2425 2-Channel 10V Input Proportional Solid State Relay Controller - 100-240VAC, 25A - Perfect for Industrial Automation & Temperature Control Systems
$139.45 $253.56
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:9 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:28088585
Guranteed safe checkout
Product Description

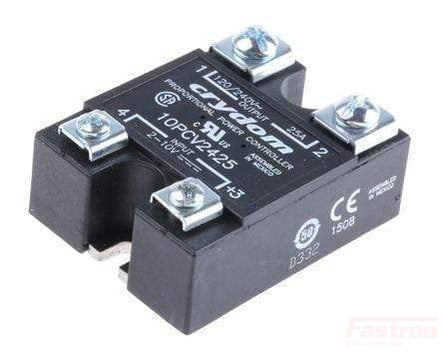

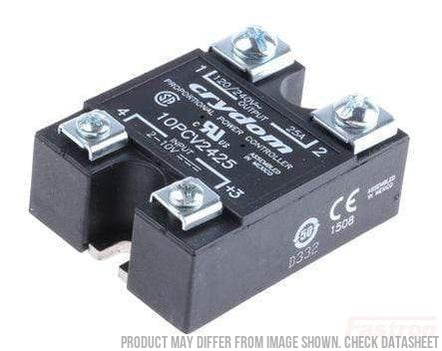

Crydom 10PCV2425, 2-10V Input Proportional Solid State Relay/Controller, 100-240VAC, 25 Amp
Features
- 2-10V Proportional Phase Control Input
- Ratings from 25A to 90 Amp @ 70-280 VAC
- SCR output for heavy industrial loads
- Zero voltage or instantaneous turn-on outputs
- UL/CE/ROHS Compliant
- Includes Plastic IP20 Terminal Cover
- Direct bond copper substrate
- Direct power lead frame
- Epoxy free design
Spec
| Crydom Part Number | 10PCV2425 |
| Switching Type | Phase Angle (Random Crossing) |
| ROHS/CE/UL | Yes |
| Control Voltage | 2 - 10V Proportional Input |
| Load Current | 25 Amp (rms) |
| Surge Capability | 250Amp (peak) |
| Special Feature | Proportional Controller + SSR |
| Mounting Style | Panel Mount |
| Load Voltage Range | 180-280VAC |
| Max Non Repetitive Peak Voltage | 600 Vp |
| Termination Style | Barrier Strip Screw |
| Unit Weight | 160g |
| Factory Pack Qty | 20 |
Datasheet
Notifications
Please note Changes from Gen 3 to Gen 4 (current) package design
Equivalent
Relequick
App Notes
- How to Verify the Proper Heatsink
- Effect of Forced Air Cooling
- Fuse Protection of SSR's
- Overvoltage Protection "P" Option MOV
- SSR Reliability Whitepaper
- 3 Phase Motors and Heating Applications
- 3 Phase Motor Reversing
- How to test a SSR
- SSR Precautions
- SSR Life Expectancy MTBF
- ROHS & Reach Statement
