Syr Line Multirange Timer TMR 48X - 8 Pin SPDT Delay Relay (0.02s-300h, 12-240VDC/24-240VAC) - 48x48mm DIN Rail Timer with A1, A2, H1, H2, Q1, Q2, D Di Functions | Industrial Automation, HVAC Control, Electrical Panel Timing
$97.57 $177.4
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:13 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:29509748
Guranteed safe checkout
Product Description

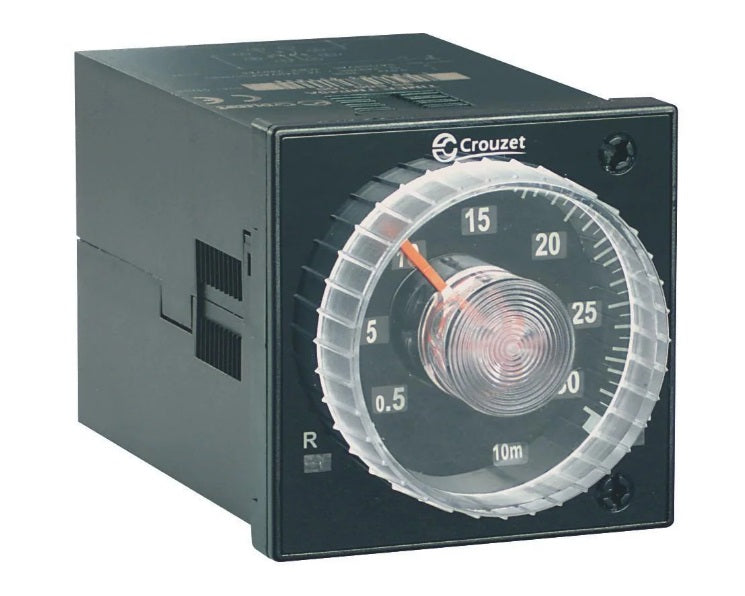

Crouzet Syr-Line Single Pole Multifunction Timer With SP-NO/NC Contacts
TMR 48 X Timers Syrline 48x48mm - 1 Relay 5A :
- Multi-Function
- Mono Function
- Multi-range (0.02 s – 300 h)
- Multi-voltage (12-240VDC/24-240 V AC)
- 2 x CO relay outputs (Changeover)
- DIN Sized (48x48 mm) Housing
- Compact body (64.5 mm long)
- Water & Dust-proof (IP50)
- 8-Pin
Multifunction Timers Include The Following :
- A1, A2, H1, H2, Q1, Q2, D-Di
Specification
| Crouzet Part Number | 88886116 |
| Function | Multifunction & Mono Function Timer A1, A2, H1, H2, Q1, Q2, D-Di |
| Nominal Voltage | 12 - 240VDC / 24 → 240 VAC |
| Digital Output | 2 x C/O (SPDT) (Changeover -Single Pole Double Throw), 250VAC/DC @ 5 Amp |
| Min Breaking Current | 10mA/12VDC |
| Timing Ranges | Selectable 0.02→300h |
| Minimum Pulse Duration | 30ms/100ms with load |
| Repeatability | 0.5% |
| Reset Time | 120ms |
| Memory | N/A |
| Isolation | 1kV |
| Repetition Accuracy | 0.5% |
| Threshold Adjustment Range | 10 → 100 % of the range |
| Termination Style | 8 Pin Base |
| Weight | 80g |
| Certification | CE, cULus,CCC, ROHS, Reach, WEEE |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP50 (Front), IP40 (Rear) |
| Mechanical Resistance | Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
